Product Model

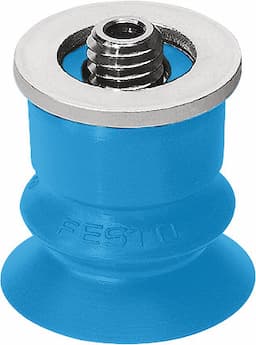

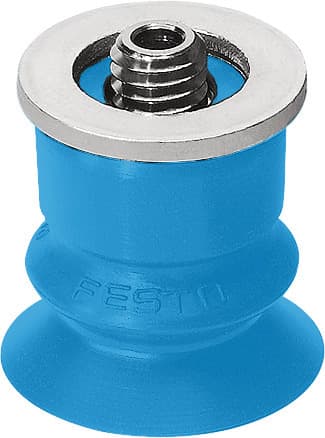

ess-20-bu
Key Features
- 1Height Compensator: The ESS-20-BU suction cup includes a 6 mm height compensator for precise workpiece handling.
- 2Round Bellows Design: Equipped with a round bellows design, providing a smooth and reliable vacuum connection.
- 3Low Corrosion Resistance: Offers CRC 1 – Low corrosion stress, ensuring durability in various environments.
- 4Atmospheric Air Operation: Operates with atmospheric air based on ISO 8573-1:2010, suitable for diverse applications.
- 5Easy Interchangeability: Easily interchangeable with other suction cups, enhancing flexibility in your setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 6mm | Min. workpiece radius | 40mm |
| Nominal width | 3mm | Suction cup diameter | 20mm |
| Suction cup volume | 1.6cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Classification of suction cup holder | Size 4 | Suction cup shape | Round bellows, 1.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
| Ambient temperature | -20°C 60°C | Holding force at nominal operating pressure | 12.9N |
| Lateral force at nominal operating pressure | 9.5N | Product weight | 6.7g |
| Type of mounting | Via vacuum connection | Vacuum connection | M6 |
| Color | Blue | Shore hardness | 60 +/- 5 |
| Material of screwed plug | Brass, nickel-plated Steel, galvanized and chrome-plated | Note on materials | RoHS-compliant |
| Suction cup material | PUR | Manufacturer ID | 189379 |
Specifications may be subject to change without notice
