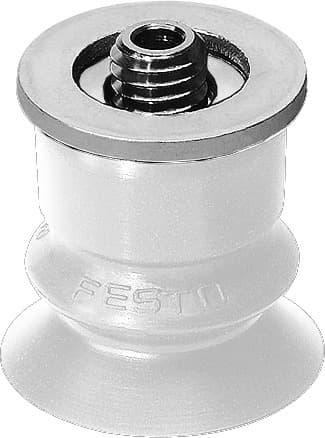

Product Model

ess-20-bs

Manufacturer

Festo

Key Features

1High Holding Force: The ESS-20-BS suction cup offers a nominal holding force of 12.9 N, ensuring reliable grip in various applications.
2Durable Silicone Material: Made from high-quality VMQ (silicone), this suction cup is resistant to corrosion and suitable for use with food.
3Compact Design: With a diameter of 20 mm and a volume of 1.6 cm³, it is compact and efficient for precise operations.
4Wide Operating Temperature Range: The suction cup operates effectively between -30°C and 180°C, making it versatile for different environments.
5Easy Mounting via M6 Connection: The M6 vacuum connection ensures easy mounting and secure operation in various mounting positions.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Suction cup height compensation	6mm	Min. workpiece radius	40mm
Nominal width	3mm	Suction cup diameter	20mm
Suction cup volume	1.6cm3	Connection position	Top
Mounting position	Any	Symbol	00991485
Classification of suction cup holder	Size 4	Suction cup shape	Round bellows, 1.5 convolutions
Operating pressure	-13.775psi 0psi	Nominal operating pressure	-10.15psi
Operating medium	Atmospheric air based on ISO 8573-1:2010 [7:-:-]	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364 zone III	For use in the food industry	See supplementary material information
Ambient temperature	-30°C 180°C	Holding force at nominal operating pressure	12.9N
Lateral force at nominal operating pressure	8N	Product weight	6.7g
Type of mounting	Via vacuum connection	Vacuum connection	M6
Color	Transparent	Shore hardness	50 +/- 5
Material of screwed plug	Brass, nickel-plated Steel, galvanized and chrome-plated	Note on materials	RoHS-compliant
Suction cup material	VMQ (silicone)	Manufacturer ID	189380

Specifications may be subject to change without notice
