Product Model

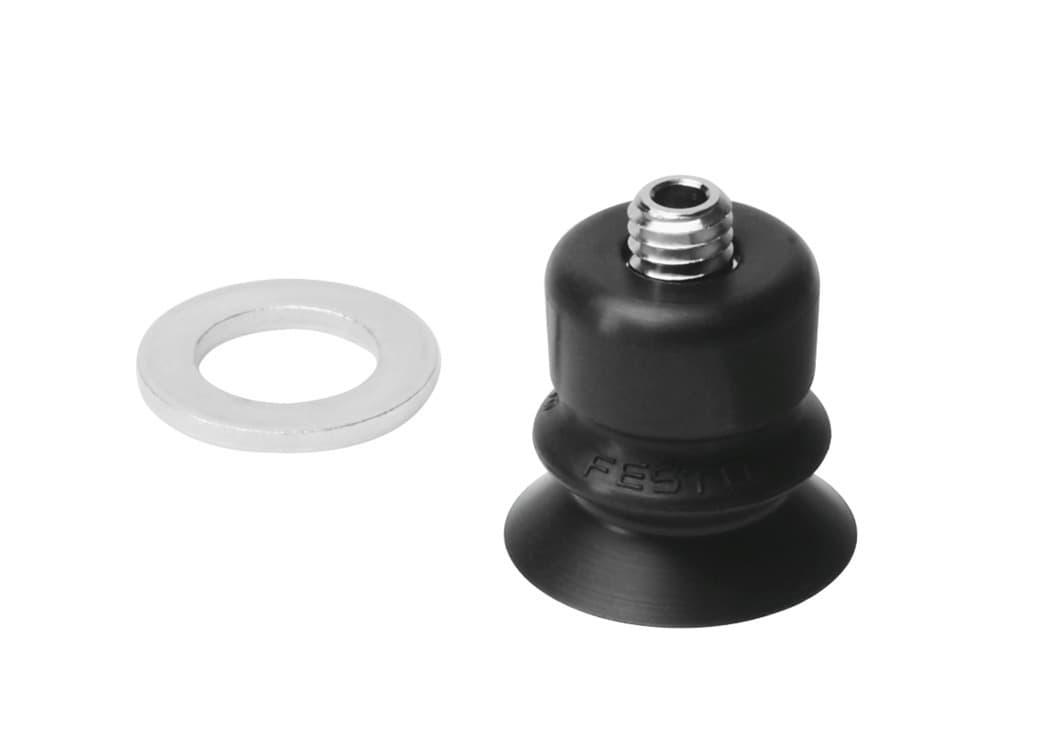

ess-20-bn
Key Features
- 1Interchangeable Suction Cup: Easily replaceable for versatile use.
- 2Height Compensator: 6mm height compensator ensures consistent performance.
- 3High Holding Force: 12.9N holding force at nominal operating pressure.
- 4Low Corrosion Stress: Classified as CRC 1 for low corrosion resistance.
- 5Atmospheric Air Operation: Compatible with atmospheric air based on ISO 8573-1:2010.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 6mm | Min. workpiece radius | 40mm |
| Nominal width | 3mm | Suction cup diameter | 20mm |
| Suction cup volume | 1.6cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Classification of suction cup holder | Size 4 | Suction cup shape | Round bellows, 1.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
| Ambient temperature | -10°C 70°C | Holding force at nominal operating pressure | 12.9N |
| Lateral force at nominal operating pressure | 9.5N | Product weight | 6.7g |
| Type of mounting | Via vacuum connection | Vacuum connection | M6 |
| Color | Black | Shore hardness | 50 +/- 5 |
| Material of screwed plug | Brass, nickel-plated Steel, galvanized and chrome-plated | Note on materials | RoHS-compliant |
| Suction cup material | NBR | Manufacturer ID | 189378 |
Specifications may be subject to change without notice
