Product Model

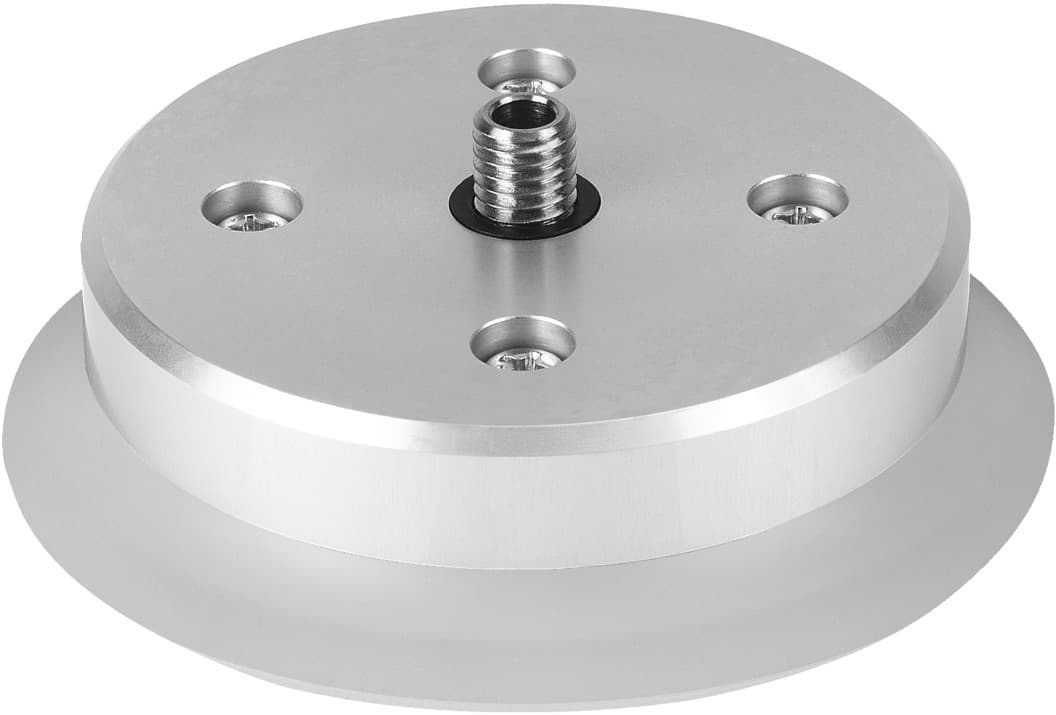

ess-150-ss
Key Features
- 1High-Quality Material: Made from durable silicon for long-lasting performance.
- 2Versatile Application: Suitable for a wide range of applications including food and packaging industries.
- 3Easy Installation: Simple mounting via vacuum port with M20x2 connection.
- 4Robust Design: Corrosion-resistant and compliant with RoHS regulations.
- 5Strong Holding Force: Provides a nominal holding force of 900 N at nominal operating pressure.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 480mm | Nominal width | 10mm |
| Suction cup diameter | 150mm | Suction cup volume | 173.826cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Classification of suction cup holder | Size 6 |
| Suction cup shape | Round, flat | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| For use in the food industry | See supplementary material information | Ambient temperature | -30°C 180°C |
| Holding force at nominal operating pressure | 900N | Lateral force at nominal operating pressure | 400N |
| Product weight | 719g | Type of mounting | Via vacuum connection |
| Vacuum connection | M20x2 | Color | Transparent |
| Shore hardness | 50 +/- 5 | Material of screwed plug | NBR Steel, nickel-plated Steel, galvanized and chrome-plated |
| Note on materials | RoHS-compliant | Suction cup material | VMQ (silicone) |
| Manufacturer ID | 189328 |
Specifications may be subject to change without notice
