Product Model

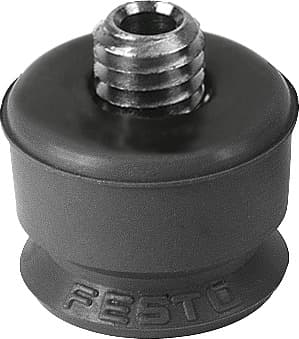

ess-10-sf
Key Features
- 1High Suction Power: The ESS-10-SF offers robust suction power, ensuring reliable handling of materials with oily surfaces.
- 2Durable Construction: Made from high-quality polyurethane, the suction cup is extremely resilient and durable under tough operating conditions.
- 3Modular System: The modular design allows for customization, enabling you to define an optimized version of the suction cup based on your workpiece.
- 4Versatile Applications: Suitable for various applications including food sector, sheet metal handling, and antistatic variants.
- 5Food-Safe & Low Corrosion: Meets food safety standards and has low corrosion resistance classification, making it ideal for sensitive environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 30mm | Nominal width | 2mm |
| Suction cup diameter | 10mm | Suction cup volume | 0.05cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Classification of suction cup holder | Size 3 |
| Suction cup shape | Round, flat | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| For use in the food industry | See supplementary material information | Ambient temperature | -10°C 200°C |
| Holding force at nominal operating pressure | 3.9N | Lateral force at nominal operating pressure | 4.5N |
| Product weight | 1.5g | Type of mounting | Via vacuum connection |
| Vacuum connection | M4 | Color | Gray |
| Shore hardness | 60 +/- 5 | Material of screwed plug | Brass, nickel-plated |
| Note on materials | RoHS-compliant | Suction cup material | FPM |
| Manufacturer ID | 189287 |
Specifications may be subject to change without notice
