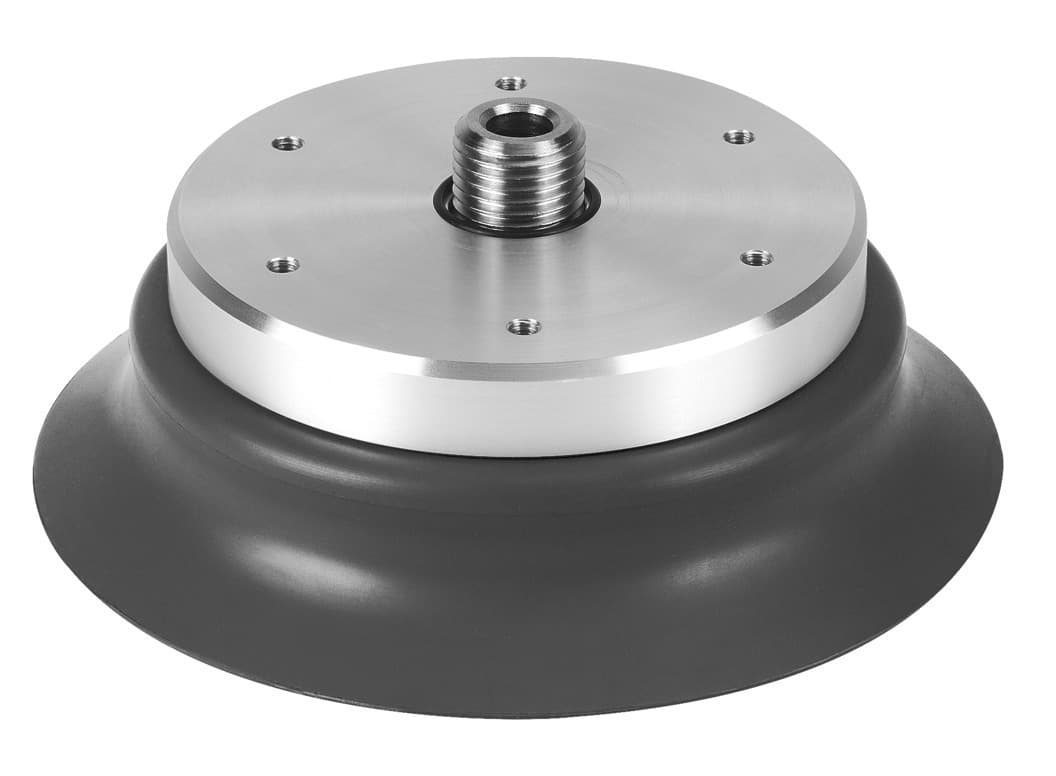

Product Model
ess-100-en
Key Features
- 1Round, Extra Deep Design: Ensures a secure grip on workpieces.
- 2High Operating Pressure: Operates effectively at 0 to 0.95 bar.
- 3Corrosion Resistance: Classified as CRC 1, suitable for low corrosion stress environments.
- 4Food-Safe: Meets food safety standards, as specified in supplementary material information.
- 5Versatile Assembly: Compatible with any assembly position, making it versatile for different applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 200mm | Nominal width | 6mm |
| Suction cup diameter | 100mm | Suction cup volume | 84.66cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Classification of suction cup holder | Size 5 |
| Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| For use in the food industry | See supplementary material information | Ambient temperature | -10°C 70°C |
| Holding force at nominal operating pressure | 440.8N | Lateral force at nominal operating pressure | 351N |
| Product weight | 228g | Type of mounting | Via vacuum connection |
| Vacuum connection | M10 | Color | Black |
| Shore hardness | 60 +/- 5 | Material of screwed plug | POM Steel, nickel-plated Steel, galvanized and chrome-plated |
| Note on materials | RoHS-compliant | Suction cup material | NBR |
| Manufacturer ID | 189362 |
Specifications may be subject to change without notice
