Product Model
esh-hd-4-qs
Key Features

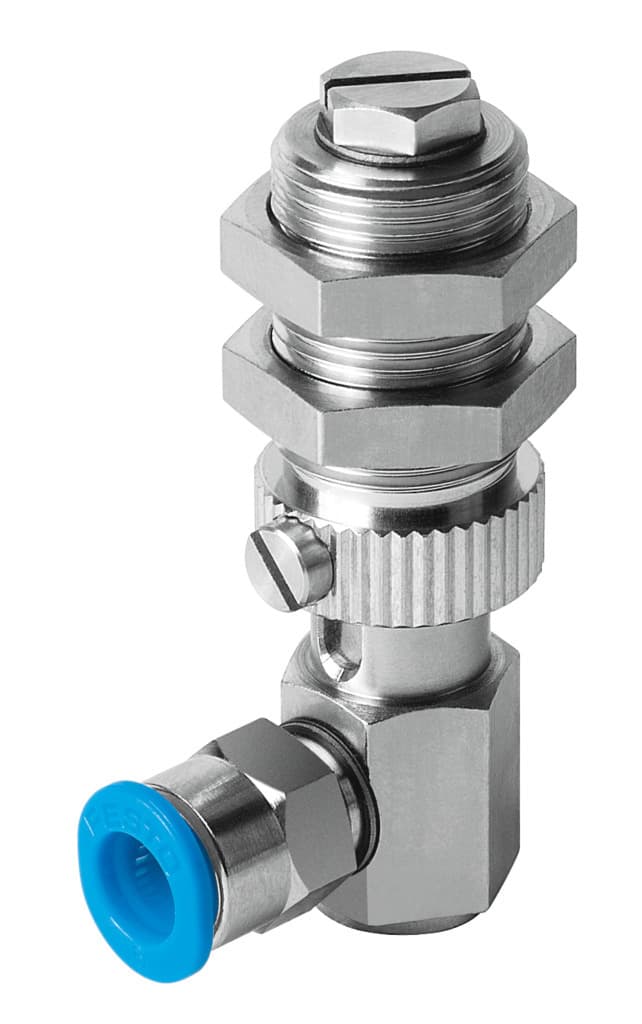

- 1The Festo ESH-HD-4-QS suction cup holder features a 6mm height compensator for precise positioning.
- 2Built with high-quality materials including NBR, steel, and aluminum for durability.
- 3Classified as 1 - Low corrosion stress, ensuring long-term reliability in various environments.
- 4Equipped with a vertical mounting position and side vacuum connection for easy installation.
- 5Meets ISO 8573-1:2010 and VDMA24364-A1-L standards, ensuring compatibility and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 6mm | Nominal width | 5mm |
| Volume | 0.678cm3 | Mounting position | Vertical |
| Structural design | Vacuum connection at side with height compensation | Classification of suction cup holder | Size 4 |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | 0°C 60°C |
| Product weight | 45g | Type of mounting | With lock nut |
| Suction cup mounting | M6 | Vacuum connection | QS-6 |
| Note on materials | RoHS-compliant | Seals material | NBR Steel |
| Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189239 |
Specifications may be subject to change without notice
