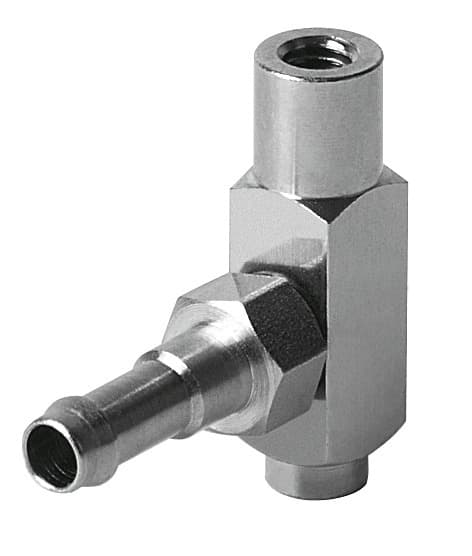

Product Model
esh-hb-1-pk
Key Features
- 1Compact design with a nominal size of 2.5 mm.
- 2Low volume of 0.108 cm³ for efficient use in tight spaces.
- 3Versatile mounting options, including vertical and any position.
- 4Corrosion resistance class (CRC) 1 for low corrosion stress.
- 5RoHS-compliant and LABS (PWIS) conformity for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 2.5mm | Volume | 0.108cm3 |
| Mounting position | Any | Structural design | Vacuum connection at side |
| Classification of suction cup holder | Size 1 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 60°C | Product weight | 4g |
| Type of mounting | With internal thread | Suction cup mounting | Diameter 3 mm |
| Vacuum connection | PK-3 | Note on materials | RoHS-compliant |
| Seals material | NBR Steel | Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel |
| Manufacturer ID | 189204 |
Specifications may be subject to change without notice
