Product Model
esh-ha-6-g
Key Features

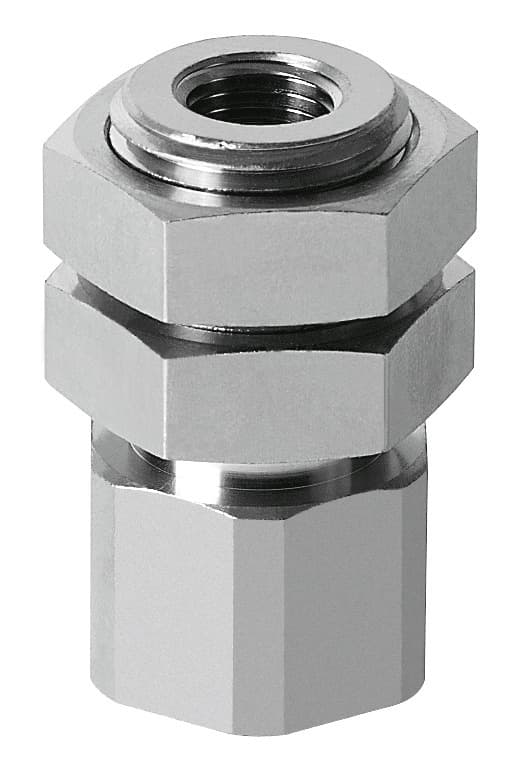

- 1The Festo ESH-HA-6-G suction cup complete holder is designed with a nominal width of 10 mm and a volume of 7.234 cm³.
- 2Offers vertical mounting position and can be mounted via lock nut with M20x2 suction cup mounting.
- 3Features low corrosion stress corrosion resistance class (CRC) 1 and LABS (PWIS) conformity.
- 4Suitable for atmospheric air based on ISO 8573-1:2010 and operates within an ambient temperature range of -10 °C to 60 °C.
- 5Constructed from RoHS-compliant materials including aluminum, nickel-plated brass, POM, tempered steel, and high-alloy steel.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 10mm | Volume | 7.234cm3 |
| Mounting position | Any | Structural design | Vacuum connection at top |
| Classification of suction cup holder | Size 6 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 60°C | Product weight | 200g |
| Type of mounting | With lock nut | Suction cup mounting | M20x2 |
| Vacuum connection | G1/4 | Note on materials | RoHS-compliant |
| Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189202 |
Specifications may be subject to change without notice
