Product Model

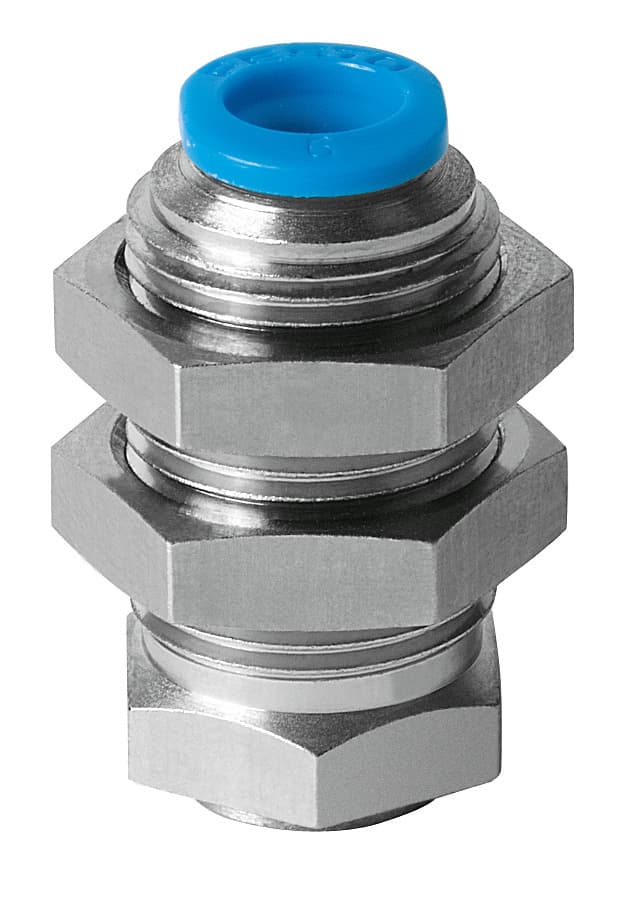

esh-ha-4-qs
Key Features
- 10.719CCM volume, perfect for space-efficient installations.
- 2Class KBK 1, ensuring durability in various environments.
- 3Vertical mounting position with top vacuum connection for easy setup.
- 4RoHS compliant and made from NBR seals and high-alloy steel brackets.
- 5Fastened with a locking nut and M6 suction cup mounting for secure fixation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 5mm | Volume | 0.719cm3 |
| Mounting position | Any | Structural design | Vacuum connection at top |
| Classification of suction cup holder | Size 4 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | 0°C 60°C | Product weight | 30g |
| Type of mounting | With lock nut | Suction cup mounting | M6 |
| Vacuum connection | QS-6 | Note on materials | RoHS-compliant |
| Seals material | NBR | Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel |
| Manufacturer ID | 189199 |
Specifications may be subject to change without notice
