Product Model

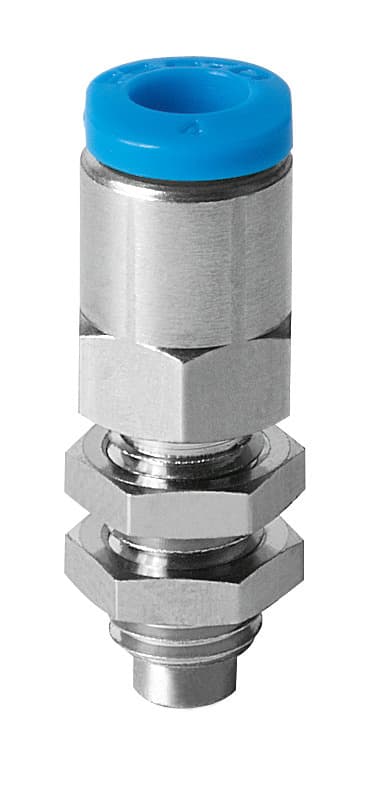

esh-ha-1-qs
Key Features
- 1Compact design with a nominal diameter of 3 mm.
- 2Low volume of 0.239 cm³ for efficient use.
- 3Vacuum port on top for easy connection.
- 4Corrosion resistance class (CRC) 1 - Low corrosion stress.
- 5Compatible with atmospheric air based on ISO 8573-1:2010.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 3mm | Volume | 0.239cm3 |
| Mounting position | Any | Structural design | Vacuum connection at top |
| Classification of suction cup holder | Size 1 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | 0°C 60°C | Product weight | 6g |
| Type of mounting | With lock nut | Suction cup mounting | Diameter 3 mm |
| Vacuum connection | QS-4 | Note on materials | RoHS-compliant |
| Seals material | NBR | Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel |
| Manufacturer ID | 189193 |
Specifications may be subject to change without notice
