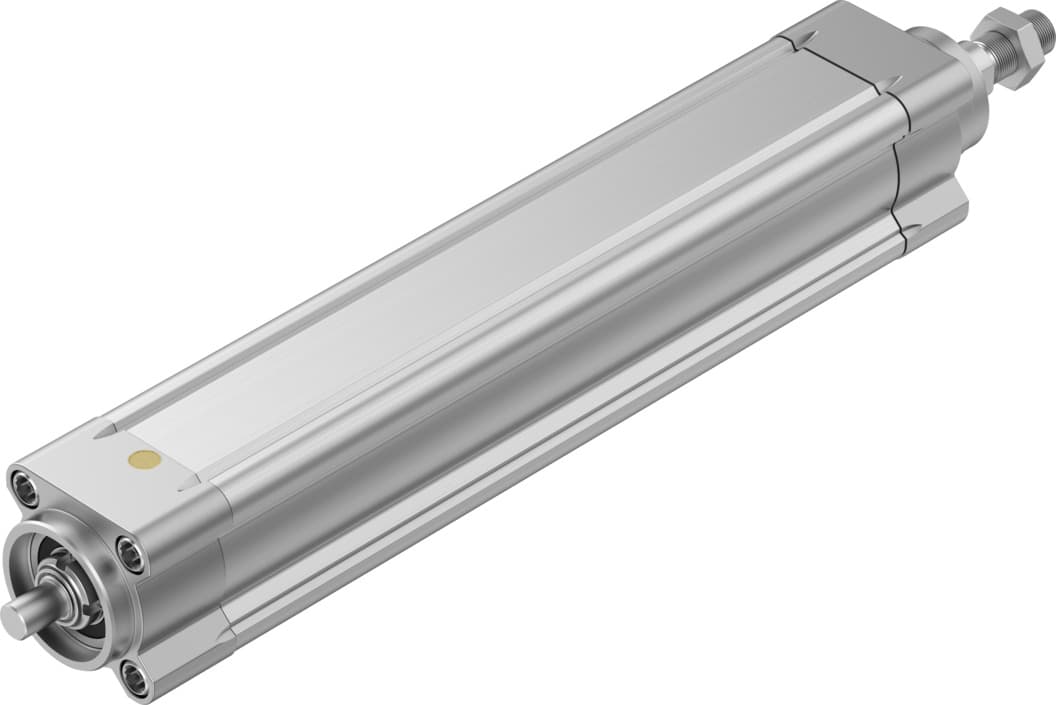

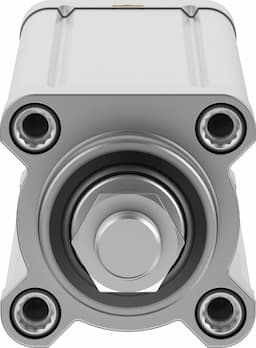

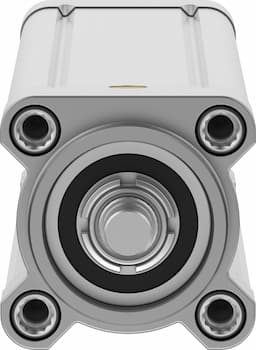

Product Model
esbf-ls-50-200-4p
Key Features
- 1The ESBF-LS-50-200-4P electric cylinder offers a 200 mm stroke with a reversing backlash of 100 µm, ensuring precise linear motion in industrial automation applications.
- 2Built with high-alloy stainless steel for the piston rod and smooth-anodised wrought aluminium alloy for the cylinder barrel, this electric cylinder is designed for durability and resistance to corrosion.
- 3The ESBF-LS-50-200-4P can be mounted via a female thread or accessories, providing flexibility in installation and integration with various systems.
- 4With a max. drive torque of 4.8 Nm and a max. feed force of 1600 N, this electric cylinder is optimized for efficient energy use in industrial settings.
- 5Designed to work with both stepper and servo motors, the ESBF-LS-50-200-4P is compatible with a wide range of motor types, making it suitable for various industrial automation needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 50 | Stroke | 200mm |
| Piston rod thread | M16x1.5 | Reversing backlash | 100μm |
| Screw diameter | 20mm | Spindle pitch | 4mm/U |
| Max. angle of rotation of the piston rod +/- | 0.15deg | Based on norm | ISO 15552 |
| Mounting position | Any | Piston rod end | External thread |
| Motor type | Stepper motor Servo motor | Position sensing | For proximity sensor |
| Structural design | Electric actuator with lead screw spindle | Spindle type | Lead screw |
| Symbol | 00991941 | Protection against torsion/guide | With plain-bearing guide |
| Max. acceleration | 2.5m/s2 | Max. speed | 0.2m/s |
| Repetition accuracy | ±0.05 mm | Duty cycle | 100% |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -20°C 60°C | For use in the food industry | See supplementary material information |
| Relative air humidity | 0 - 95 % | Degree of protection | IP40 |
| Ambient temperature | 0°C 50°C | Max. driving torque | 4.8Nm |
| Max. radial force on actuator shaft | 300N | Max. feed force Fx | 1600N |
| No-load driving torque | 0.3Nm | Guide value for payload, horizontal | 160kg |
| Guide value for payload, vertical | 160kg | Mass moment of inertia JH per meter of stroke | 1.2382kgcm2 |
| Mass moment of inertia JL per kg of payload | 0.004kgcm2 | Mass moment of inertia JO | 0.1407kgcm2 |
| Moving mass at 0?mm stroke | 532g | Additional moving mass per 10?mm stroke | 13g |
| Basic weight with 0?mm stroke | 1716g | Additional weight per 10?mm stroke | 67g |
| Type of mounting | With internal thread or accessory | Interface code, actuator | D50 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy, smooth-anodized |
| Piston rod material | High-alloy stainless steel | Material of screws | Steel, galvanized |
| Spindle nut material | Roller bearing steel | Spindle material | Roller bearing steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 2295383 |
Specifications may be subject to change without notice
