Product Model

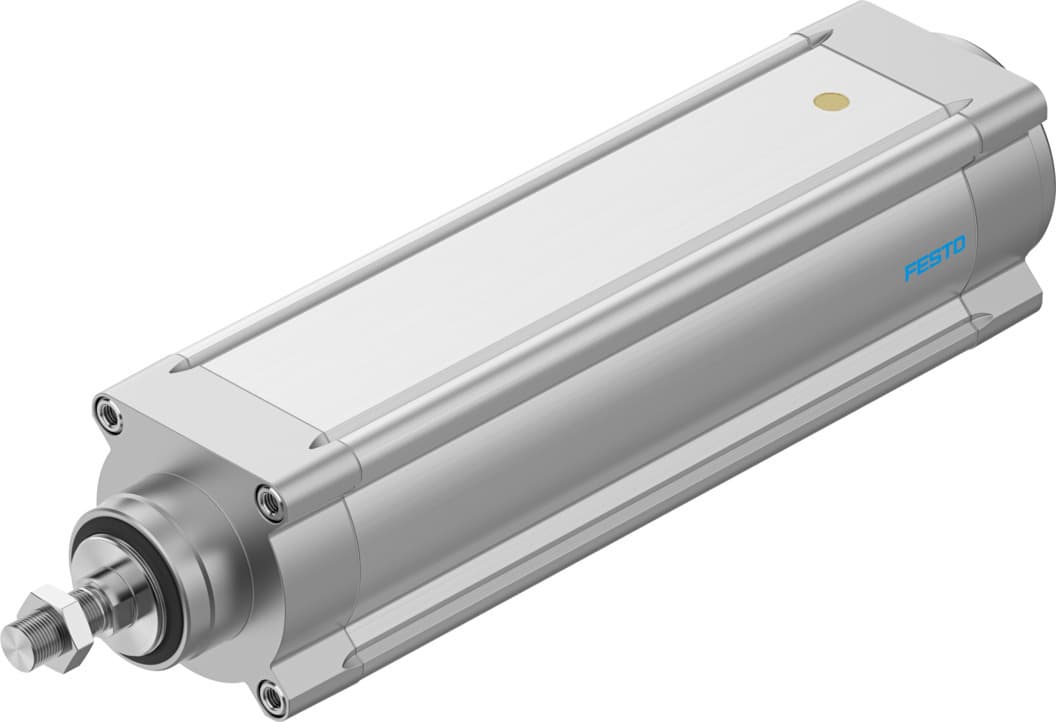

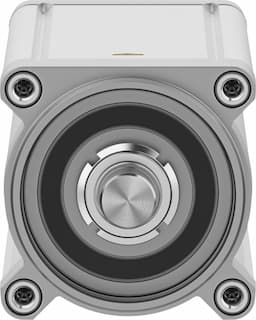

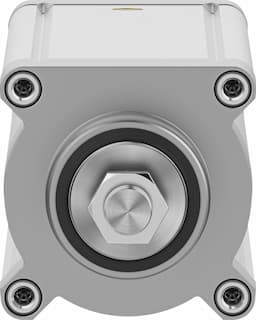

esbf-bs-100-200-5p
Key Features
- 1The ESBF-BS-100-200-5P features a reversing backlash of 30 µm, ensuring precise and reliable movement in your industrial applications.
- 2This electric drive offers optional mounting positions, allowing for flexible integration into various automation systems.
- 3Built with high-alloy stainless steel for the piston rod and cast aluminum for the cover, this drive is designed for durability and resistance to corrosion.
- 4With a max. acceleration of 5 m/s² and a max. speed of 0.17 m/s, the ESBF-BS-100-200-5P delivers efficient performance in demanding applications.
- 5Suitable for use with food and designed to meet VDMA24364 zone III standards, this drive ensures compliance with stringent industry requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 100 | Stroke | 200mm |
| Piston rod thread | M20x1.5 | Reversing backlash | 30μm |
| Screw diameter | 40mm | Spindle pitch | 5mm/U |
| Max. angle of rotation of the piston rod +/- | 0.5deg | Based on norm | ISO 15552 |
| Mounting position | Any | Piston rod end | External thread |
| Motor type | Servo motor | Position sensing | For proximity sensor |
| Structural design | Electric actuator with ball screw | Spindle type | Ball screw |
| Symbol | 00991941 | Protection against torsion/guide | With plain-bearing guide |
| Max. acceleration | 5m/s2 | Max. speed | 0.17m/s |
| Repetition accuracy | ±0.01 mm | Duty cycle | 100% |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -20°C 60°C | For use in the food industry | See supplementary material information |
| Relative air humidity | 0 - 95 % | Degree of protection | IP40 |
| Ambient temperature | 0°C 60°C | Max. driving torque | 16.9Nm |
| Max. radial force on actuator shaft | 1100N | Max. feed force Fx | 17000N |
| No-load driving torque | 0.7Nm | Guide value for payload, horizontal | 1700kg |
| Guide value for payload, vertical | 1700kg | Mass moment of inertia JH per meter of stroke | 18.978kgcm2 |
| Mass moment of inertia JL per kg of payload | 0.00633kgcm2 | Mass moment of inertia JO | 4.6963kgcm2 |
| Moving mass at 0?mm stroke | 8786g | Additional moving mass per 10?mm stroke | 132g |
| Basic weight with 0?mm stroke | 11123g | Additional weight per 10?mm stroke | 193g |
| Type of mounting | With internal thread or accessory | Interface code, actuator | D100 |
| Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
| Piston rod material | High-alloy stainless steel | Material of screws | Steel, galvanized |
| Spindle nut material | Roller bearing steel | Spindle material | Roller bearing steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 1347393 |
Specifications may be subject to change without notice
