Product Model

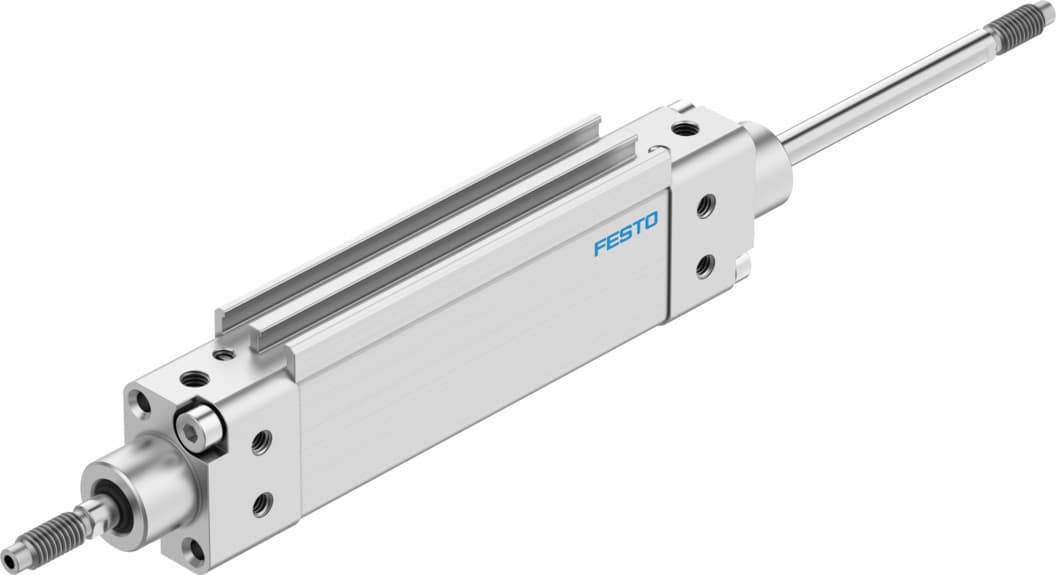

dzh-16- -ppv-a-s20
Key Features
- 1The DZH-16-PPV-A-S20 flat cylinder offers adjustable pneumatic cushioning at both ends, ensuring smooth operation and extended lifespan.
- 2Equipped with a high-alloy steel piston rod, this cylinder provides exceptional strength and durability in demanding industrial environments.
- 3Designed for double-acting operation, the DZH-16-PPV-A-S20 features a robust structural design that supports a wide range of applications.
- 4Available with optional mounting positions and accessories, this cylinder offers flexibility in installation and integration.
- 5Meets ISO 8573-1:2010 standards for compressed air and is RoHS-compliant, ensuring compatibility with various industrial systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 200mm | Piston diameter | 16 mm Equivalent diameter |
| Max. angle of rotation of the piston rod +/- | 3.1deg | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991236 | Variants | Through, hollow piston rod |
| Protection against torsion/guide | Oval piston | Operating pressure | 1bar 10bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -20°C 80°C | Cushioning length | 14mm |
| Max. torque for protection against rotation | 0.5Nm | Theoretical force at 6 bar, retracting | 104N |
| Theoretical force at 6 bar, advancing | 104N | Additional weight per 10?mm stroke | 11g |
| Basic weight with 0?mm stroke | 140g | Type of mounting | Optionally: With internal thread With accessories |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Cover material | Aluminum | Seals material | TPE-U(PU) |
| Housing material | Aluminum | Piston rod material | High-alloy steel |
| Manufacturer ID | 158379 |
Specifications may be subject to change without notice
