Product Model

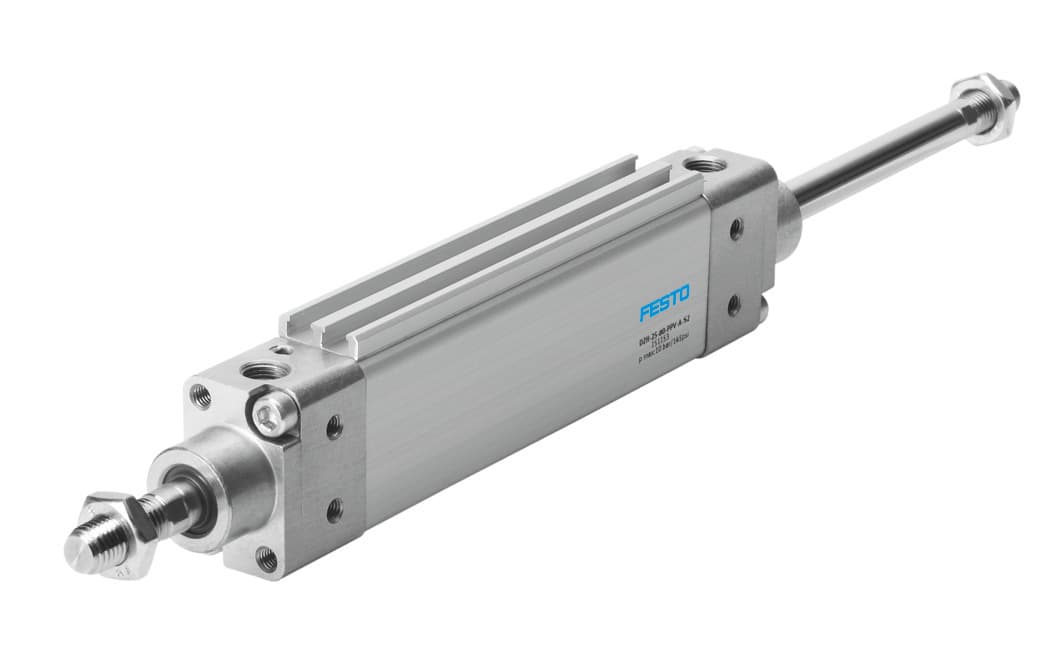

dzh-16- -ppv-a-s2
Key Features
- 1The DZH-16-PPV-A-S2 offers adjustable pneumatic cushioning at both ends, ensuring smooth and controlled motion in various applications.
- 2Equipped with an oval piston design, this cylinder provides protection against torsion, ensuring stability and reliability in double-acting operations.
- 3The high-alloy steel piston rod ensures durability and resistance to wear, making it suitable for demanding industrial environments.
- 4Compatible with operating pressures from 0.1 MPa to 1 MPa (1 bar to 10 bar), this cylinder is versatile for various pneumatic applications.
- 5Made from aluminum housing and TPE-U(PU) seals, the DZH-16-PPV-A-S2 offers a robust construction that can withstand moderate corrosion stress and ambient temperatures ranging from -20°C to 80°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 200mm | Piston diameter | 16 mm Equivalent diameter |
| Max. angle of rotation of the piston rod +/- | 3.1deg | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991237 | Variants | Through piston rod |
| Protection against torsion/guide | Oval piston | Operating pressure | 1bar 10bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -20°C 80°C | Cushioning length | 14mm |
| Max. torque for protection against rotation | 0.5Nm | Theoretical force at 6 bar, retracting | 104N |
| Theoretical force at 6 bar, advancing | 104N | Additional weight per 10?mm stroke | 11g |
| Basic weight with 0?mm stroke | 140g | Type of mounting | Optionally: With internal thread With accessories |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Cover material | Aluminum | Seals material | TPE-U(PU) |
| Housing material | Aluminum | Piston rod material | High-alloy steel |
| Manufacturer ID | 151155 |
Specifications may be subject to change without notice
