Product Model
dzf-12- -a-p-a-s2
Key Features

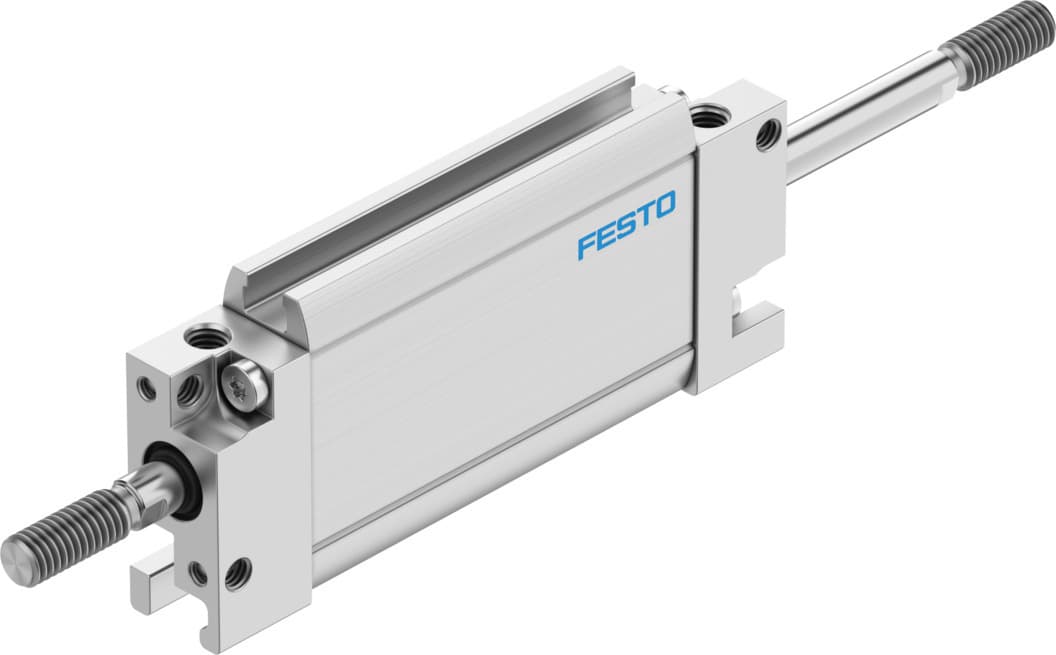

- 1The Festo DZF-12-50-A-P-A pneumatic cylinder offers high precision and reliability, ensuring consistent performance in demanding industrial applications.
- 2With a compact design, this cylinder is ideal for space-constrained environments, making it perfect for use in robotics, automation, and other precision machinery.
- 3Equipped with elastic cushioning rings/plates at both ends, the DZF-12-50-A-P-A provides smooth operation and reduces wear and tear on the cylinder.
- 4The cylinder features position detection via proximity switch, allowing for precise control and monitoring of the piston's movement.
- 5The piston rod has a torsional backlash of +/-2.5 degrees, ensuring accurate and reliable operation in various rotational applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 200mm | Piston diameter | 12 mm Equivalent diameter |
| Max. angle of rotation of the piston rod +/- | 2.5deg | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991219 | Variants | Through piston rod |
| Protection against torsion/guide | Oval piston | Operating pressure | 1.6bar 10bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Max. torque for protection against rotation | 0.1Nm |
| Theoretical force at 6 bar, retracting | 51N | Theoretical force at 6 bar, advancing | 51N |
| Moving mass at 0?mm stroke | 12g | Additional moving mass per 10?mm stroke | 2g |
| Additional weight per 10?mm stroke | 9g | Basic weight with 0?mm stroke | 96g |
| Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | M5 |
| Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
| Housing material | Aluminum Smooth anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 161221 |
Specifications may be subject to change without notice
