Product Model

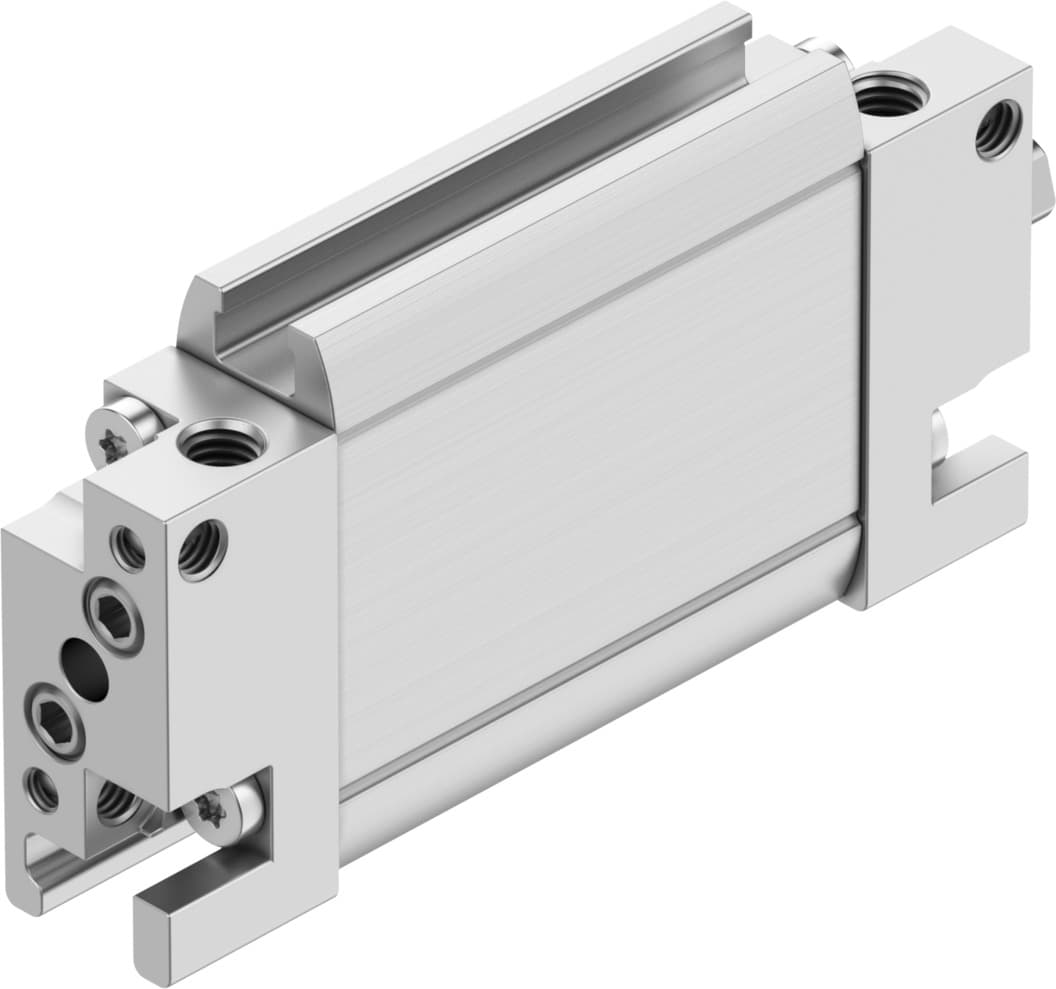

dzf-12-10-p-a
Key Features
- 1High-Performance Pneumatic Actuator: The Festo DZF-12-10-P-A is designed for high-performance applications, offering a 10mm stroke and 12mm piston diameter for precise movement.
- 2Elastic Cushioning: Equipped with elastic cushioning rings/pads at both ends, this cylinder ensures smooth operation and reduces wear and tear.
- 3Double-Acting Mode: Suitable for double-acting operations, this flat cylinder provides reliable performance in both advancing and retracting strokes.
- 4Precise Position Sensing: Features proximity sensor compatibility for precise position detection, ensuring accurate control in your applications.
- 5Corrosion Resistance: Built with a corrosion resistance class of 2, this cylinder can withstand moderate corrosion stress, making it suitable for various industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 12 mm Equivalent diameter |
| Max. angle of rotation of the piston rod +/- | 2.5deg | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991217 | Protection against torsion/guide | Oval piston |
| Operating pressure | 1.6bar 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Max. torque for protection against rotation | 0.1Nm | Theoretical force at 6 bar, retracting | 51N |
| Theoretical force at 6 bar, advancing | 68N | Moving mass at 0?mm stroke | 12g |
| Additional moving mass per 10?mm stroke | 2g | Additional weight per 10?mm stroke | 9g |
| Basic weight with 0?mm stroke | 96g | Type of mounting | Optionally: With internal thread With accessories |
| Pneumatic connection | M5 | Cover material | Wrought aluminum alloy |
| Seals material | NBR TPE-U(PU) | Housing material | Aluminum Smooth anodized |
| Piston rod material | High-alloy stainless steel | Manufacturer ID | 164003 |
Specifications may be subject to change without notice
