Product Model

dzf-11/16"-1"-p-a

Manufacturer

Festo

Key Features

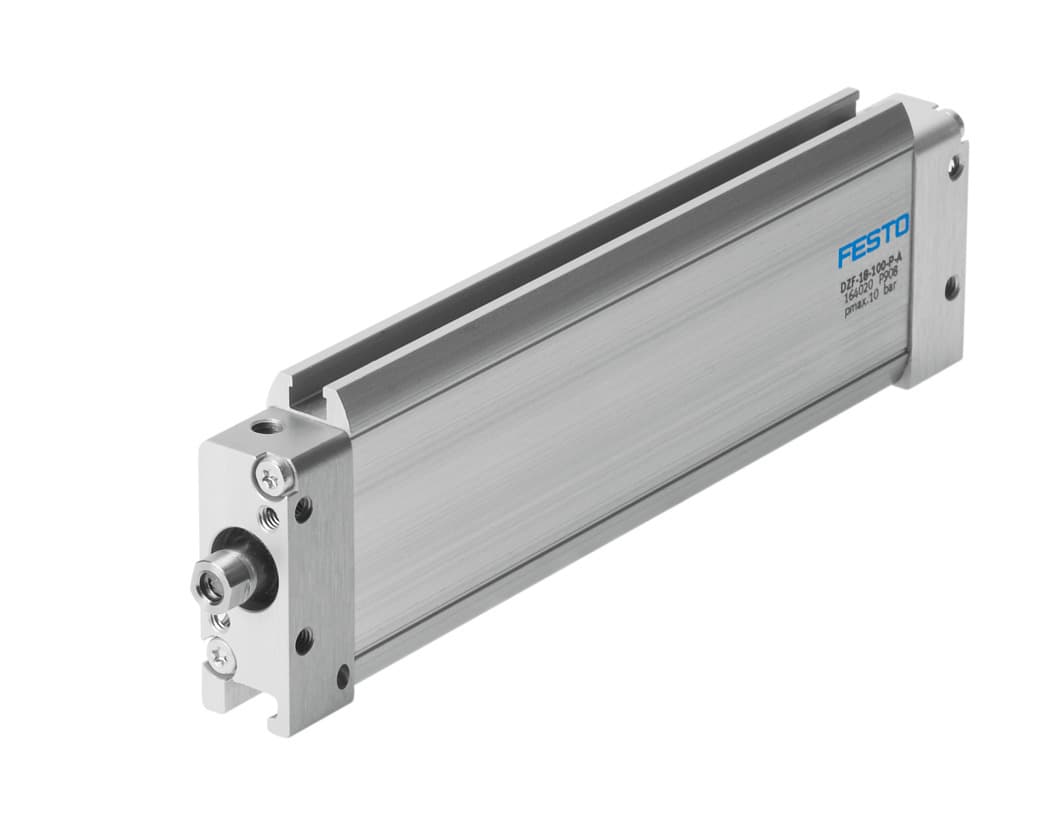

1The Festo DZF-11/16"-1"-P-A is a compact cylinder, perfect for space-constrained industrial applications. Its small size makes it easy to integrate into various automation systems.
2This cylinder operates in both directions, allowing for efficient and reliable movement in your industrial processes. Ideal for applications requiring precise control.
3The DZF series adheres to ISO standards, ensuring compatibility with a wide range of pneumatic systems. This makes it easy to integrate into existing setups.
4The cylinder operates within a pressure range of 14.5 ~ 145 PSI (1 ~ 10 bar), providing flexibility in various industrial environments.
5The Festo DZF series offers extensive mounting options, including male and female rod threads, making it adaptable to different application requirements.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	25.4mm	Piston diameter	11/16"
Max. angle of rotation of the piston rod +/-	1.2deg	Cushioning	Elastic cushioning rings/pads at both ends
Mode of operation	Double-acting	Symbol	00991217
Protection against torsion/guide	Oval piston	Operating pressure	1bar 10bar
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Theoretical force at 6 bar, retracting	123N
Theoretical force at 6 bar, advancing	153N	Moving mass at 0?mm stroke	24g
Additional moving mass per 10?mm stroke	2.3g	Additional weight per 10?mm stroke	4g
Basic weight with 0?mm stroke	107g	Pneumatic connection	10-32 UNF-2B
Cover material	Aluminum	Seals material	FPM TPE-U(PU)
Housing material	Wrought aluminum alloy	Piston rod material	High-alloy stainless steel
Manufacturer ID	194146
