Product Model

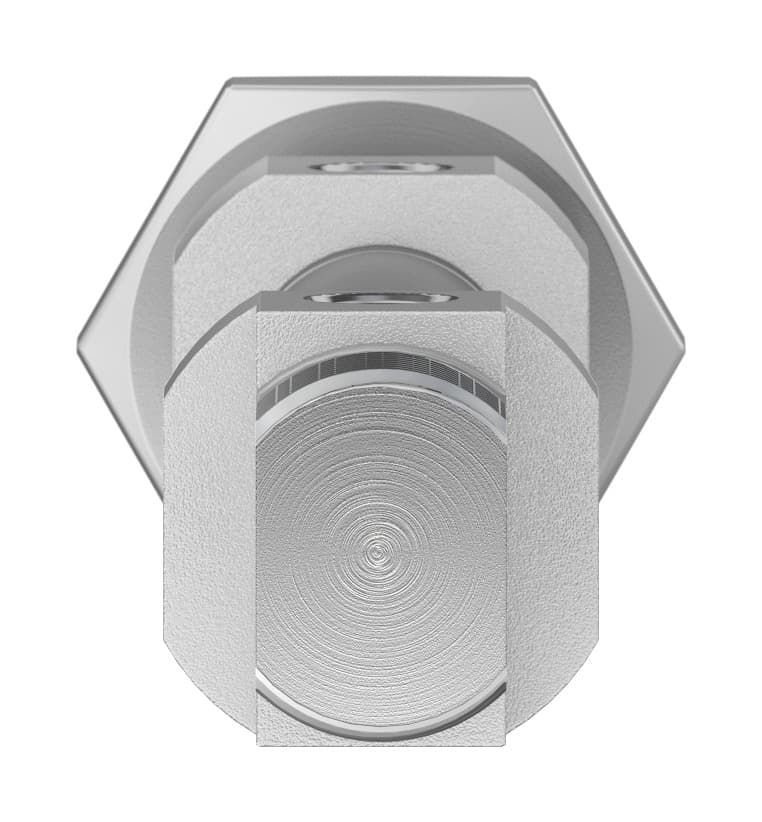

dsnu-8-30-p-a
Key Features
- 1The Festo DSNU-8-30-P-A pneumatic cylinder features a piston diameter of 8 mm and a stroke length of 30 mm, making it ideal for precise and controlled movements in various automation tasks.
- 2This cylinder is constructed with high-alloyed stainless steel for the piston rod and cylinder tube, ensuring durability and resistance to corrosion, particularly in moderate corrosion stress environments.
- 3The DSNU-8-30-P-A includes elastic silencer rings for effective dampening, reducing noise and vibration during operation, and is designed for double-acting principles with operating pressures ranging from 1.5 to 10 bar.
- 4The cylinder is compliant with standards such as CETOP RP 52 P and ISO 6432, ensuring compatibility with a wide range of automation systems and applications.
- 5The Festo DSNU-8-30-P-A is equipped with a male thread piston rod end and supports position detection via proximity switches, making it versatile for various installation positions and configurations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 30mm | Piston diameter | 8 mm |
| Piston rod thread | M4 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
| Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Variants | Piston rod at one end | Operating pressure | 1.5bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.03J |
| Theoretical force at 6 bar, retracting | 22.6N | Additional moving mass per 10?mm stroke | 1g |
| Basic weight with 0?mm stroke | 34.6g | Type of mounting | With accessories |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy Plain anodized | Seals material | NBR TPE-U(PU) |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
| Manufacturer ID | 1908249 |
Specifications may be subject to change without notice
