Product Model

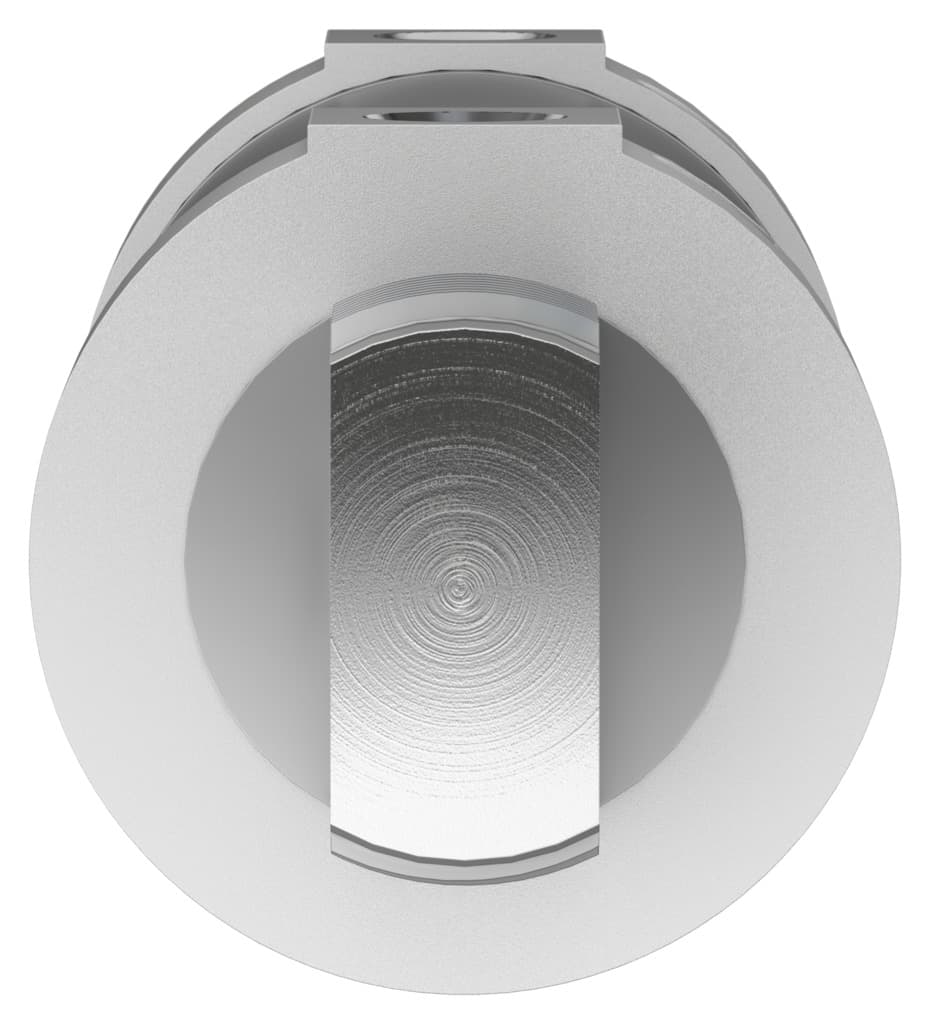

dsnu-63-80-ppv-a

Manufacturer

Festo

Key Features

1The DSNU-63-80-PPV-A pneumatic cylinder features a stroke of 80 mm and a piston diameter of 63 mm, making it versatile for various industrial applications.
2This cylinder offers adjustable pneumatic cushioning at both ends, ensuring smooth operation and precise control.
3With a range of mounting options available, including various accessories, the DSNU-63-80-PPV-A can be easily integrated into different automation systems.
4The cylinder operates with compressed air to ISO 8573-1:2010 standards, ensuring reliable performance in a variety of environments.
5Designed for double-acting operation, the DSNU-63-80-PPV-A provides balanced forces during both the advance and return strokes, enhancing its reliability and efficiency.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	80mm	Piston diameter	63 mm
Piston rod thread	M16x1.5	Cushioning	Pneumatic cushioning, adjustable at both ends
Mounting position	Any	Structural design	Piston Piston rod Cylinder barrel
Position sensing	For proximity sensor	Symbol	00991235
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Cushioning length	21mm
Theoretical force at 6 bar, retracting	1681.9N	Theoretical force at 6 bar, advancing	1870.3N
Moving mass	659g	Product weight	1797g
Type of mounting	With accessories	Pneumatic connection	G3/8
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy
Seals material	NBR TPE-U(PU)	Piston rod material	High-alloy steel
Material of cylinder barrel	High-alloy stainless steel	Manufacturer ID	196053

Specifications may be subject to change without notice
