Product Model

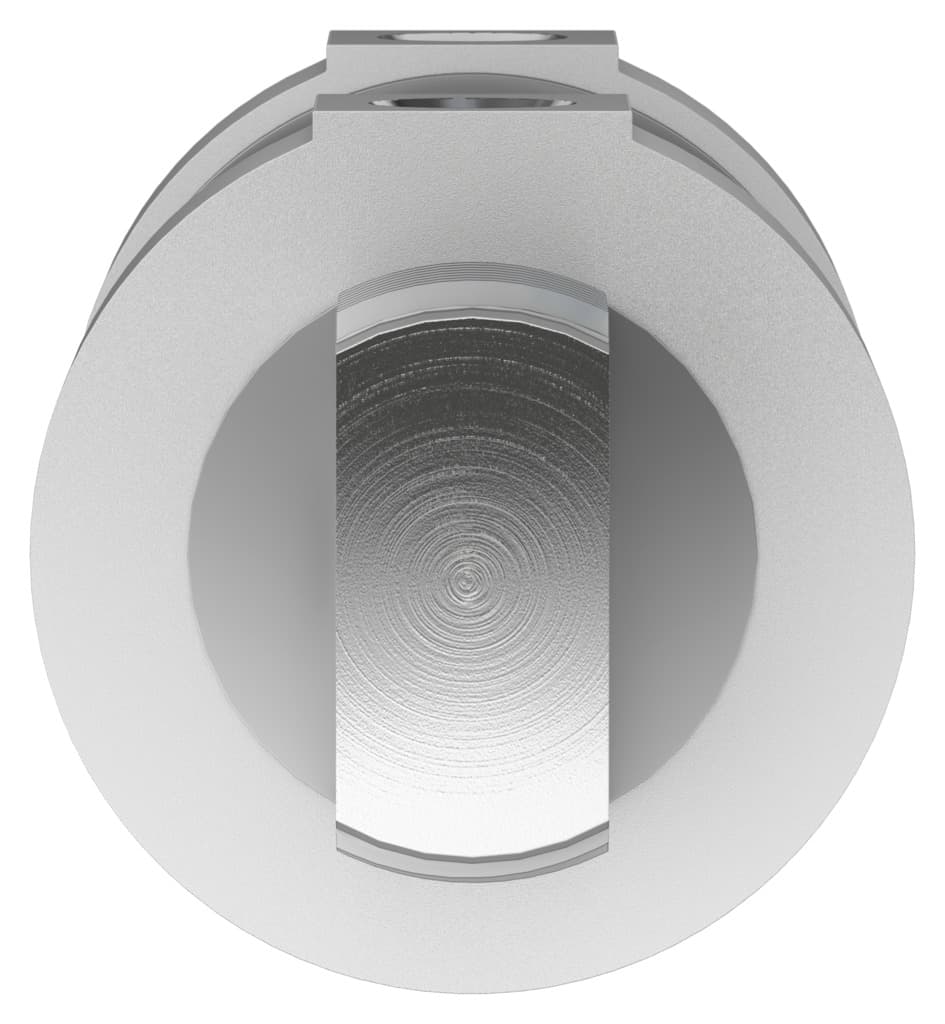

dsnu-63-50-pps-a

Manufacturer

Festo

Key Features

1High-Quality Construction: Built with high-alloy stainless steel cylinder barrel and high-alloy steel piston rod for durability.
2Self-Adjusting Cushioning: Ensures smooth operation with self-adjusting pneumatic end-position cushioning at both ends.
3Versatile Mounting Options: Optional mounting position and compatibility with proximity sensors for precise position detection.
4Wide Operating Pressure Range: Suitable for 1 to 10 bar operating pressure, ensuring flexibility in various applications.
5Compliance with ISO Standards: Meets ISO 6432 standards for double-acting pneumatic cylinders, ensuring reliability and performance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	50mm	Piston diameter	63 mm
Piston rod thread	M16x1.5	Cushioning	Self-adjusting pneumatic end-position cushioning
Mounting position	Any	Structural design	Piston Piston rod Cylinder barrel
Position sensing	For proximity sensor	Symbol	00992970
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Cushioning length	21mm
Theoretical force at 6 bar, retracting	1681.9N	Theoretical force at 6 bar, advancing	1870.3N
Moving mass	584g	Product weight	1665g
Type of mounting	With accessories	Pneumatic connection	G3/8
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy
Seals material	NBR TPE-U(PU)	Piston rod material	High-alloy steel
Material of cylinder barrel	High-alloy stainless steel	Manufacturer ID	559327

Specifications may be subject to change without notice
