Product Model

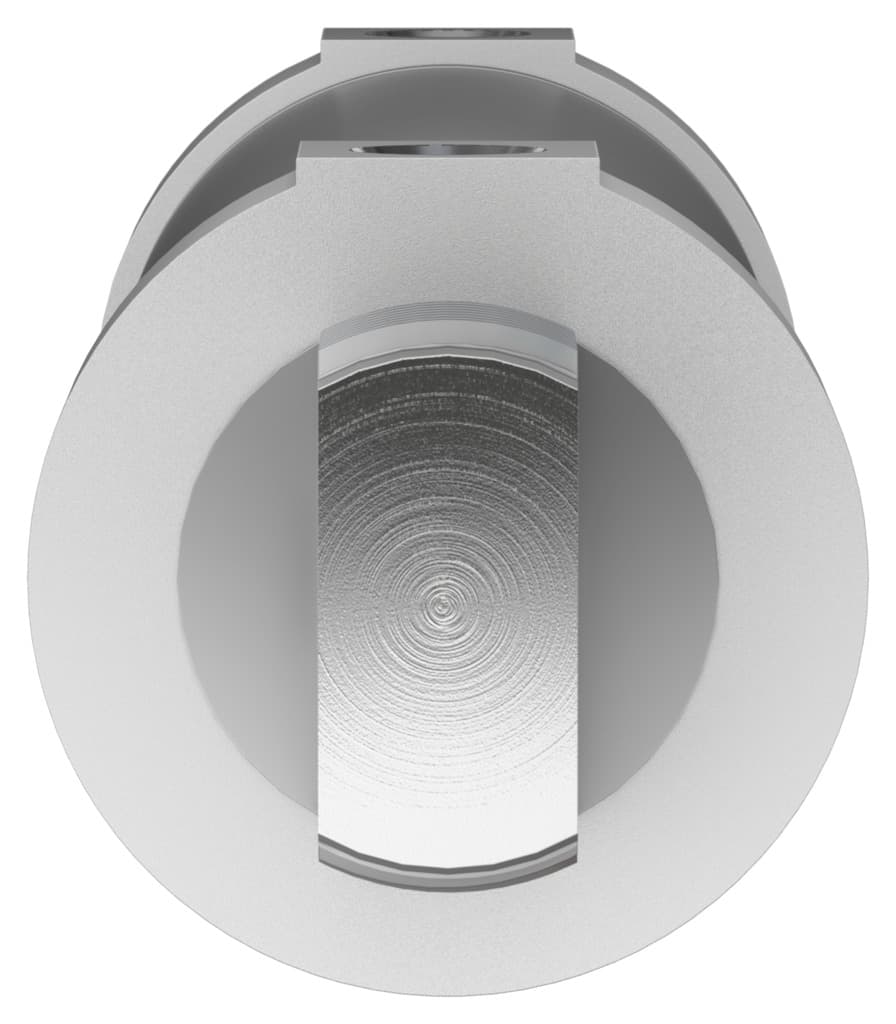

dsnu-63-160-pps-a
Key Features
- 1High Precision: Double-acting cylinder to ISO 6432 standards ensures precise operation.
- 2Versatile Mounting: Optional mounting position allows for flexible installation in various applications.
- 3Advanced Cushioning: Self-adjusting pneumatic end-position cushioning for smooth operation.
- 4Robust Construction: Made from high-alloy stainless steel material cylinder barrel and high-alloy steel material piston rod.
- 5Comprehensive Support: Free lifetime tech support and free shipping on orders over $1,000.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 160mm | Piston diameter | 63 mm |
| Piston rod thread | M16x1.5 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00992970 |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Cushioning length | 21mm |
| Theoretical force at 6 bar, retracting | 1681.9N | Theoretical force at 6 bar, advancing | 1870.3N |
| Moving mass | 859g | Product weight | 2149g |
| Type of mounting | With accessories | Pneumatic connection | G3/8 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy steel |
| Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 559331 |
Specifications may be subject to change without notice
