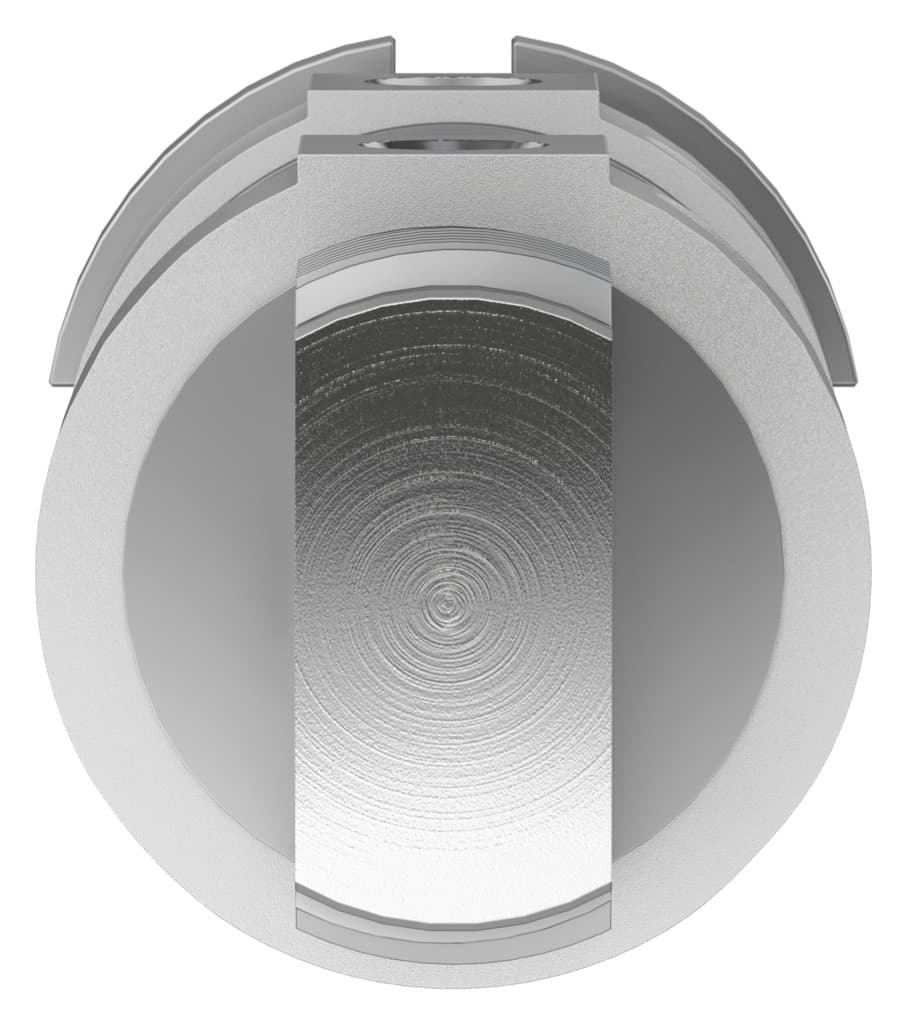

Product Model
dsnu-50-25-ppv-a
Key Features
- 1The Festo DSNU-50-25-PPV-A pneumatic cylinder offers a stroke length of 25 mm and a piston diameter of 50 mm, making it ideal for applications requiring precise movement.
- 2This cylinder features adjustable pneumatic cushioning at both ends, ensuring smooth operation and reducing wear on the system.
- 3Constructed from high-alloy stainless steel for the cylinder barrel and high-alloy steel for the piston rod, this cylinder provides excellent corrosion resistance and durability.
- 4The DSNU-50-25-PPV-A operates within a wide temperature range of -20 °C to 80 °C and supports double-acting mode with compressed air to ISO 8573-1:2010 standards.
- 5With a moving mass of 476 grams and a product weight of 1187 grams, this cylinder is designed for robust performance in various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 25mm | Piston diameter | 50 mm |
| Piston rod thread | M16x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Cushioning length | 20mm |
| Theoretical force at 6 bar, retracting | 989.6N | Theoretical force at 6 bar, advancing | 1178.1N |
| Moving mass | 476g | Product weight | 1187g |
| Type of mounting | With accessories | Pneumatic connection | G1/4 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy steel |
| Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 196040 |
Specifications may be subject to change without notice
