Product Model

dsnu-50-200-ppv-a

Manufacturer

Festo

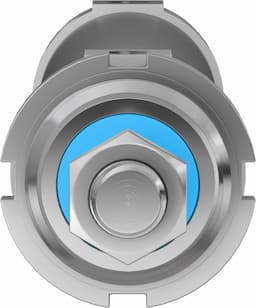

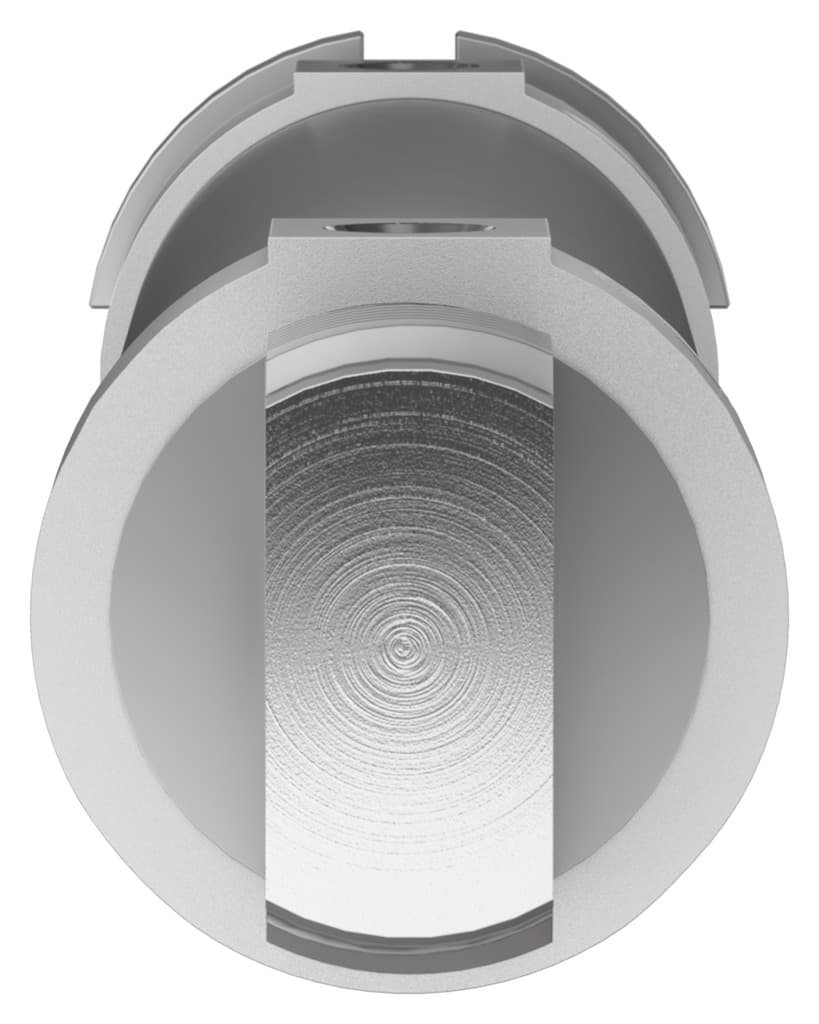

Key Features

1The DSNU-50-200-PPV-A round cylinder offers adjustable pneumatic damping on both sides, ensuring smooth and controlled movements.
2Designed for double-acting operation, this cylinder allows for precise control and efficient use in various industrial applications.
3With a corrosion resistance class of 2, the cylinder is made from high-alloy stainless steel and other durable materials, ensuring longevity in harsh environments.
4Suitable for slow stroke movements at a constant speed, this cylinder is ideal for applications requiring precise and stick-slip-free operation.
5Equipped with position detection via proximity switch, the DSNU-50-200-PPV-A cylinder provides accurate positioning and control in your automation systems.
6
7
8
9
10

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Stroke	200mm	Piston diameter	50 mm
Piston rod thread	M16x1.5	Cushioning	Pneumatic cushioning, adjustable at both ends
Mounting position	Any	Structural design	Piston Piston rod Cylinder barrel
Position sensing	For proximity sensor	Symbol	00991235
Operating pressure	1bar 10bar	Mode of operation	Double-acting
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20°C 80°C	Cushioning length	20mm
Theoretical force at 6 bar, retracting	989.6N	Theoretical force at 6 bar, advancing	1178.1N
Moving mass	913g	Product weight	1887g
Type of mounting	With accessories	Pneumatic connection	G1/4
Note on materials	RoHS-compliant	Cover material	Wrought aluminum alloy
Seals material	NBR TPE-U(PU)	Piston rod material	High-alloy steel
Material of cylinder barrel	High-alloy stainless steel	Manufacturer ID	196047

Specifications may be subject to change without notice
