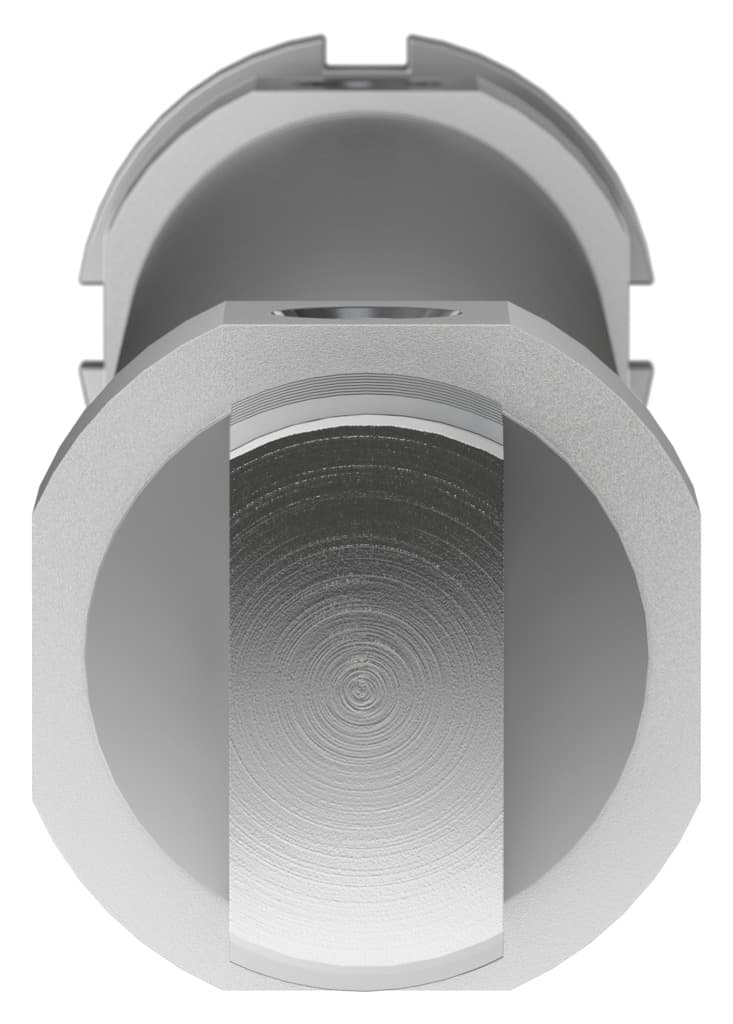

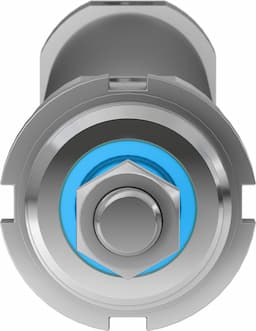

Product Model
dsnu-40-250-pps-a
Key Features
- 1Self-Adjusting Cushioning: Ensures optimal performance under changing loads and speeds.
- 2Double-Acting Operation: Allows for both extension and retraction strokes with compressed air.
- 3High Corrosion Resistance: Compliant with ISO6432 and CRC Class 2 for moderate corrosion stress.
- 4Precision Design: Built with high-alloy stainless steel cylinder barrel and wrought aluminum alloy cover.
- 5Position Sensing: Equipped with a magnetic piston for precise position detection via proximity switch.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 250mm | Piston diameter | 40 mm |
| Piston rod thread | M12x1.25 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00992970 |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Cushioning length | 18mm |
| Theoretical force at 6 bar, retracting | 633.3N | Theoretical force at 6 bar, advancing | 752.9N |
| Moving mass | 630g | Product weight | 1261g |
| Type of mounting | With accessories | Pneumatic connection | G1/4 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy steel |
| Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 559313 |
Specifications may be subject to change without notice
