Product Model

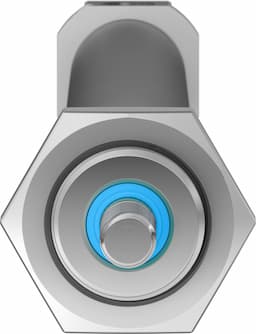

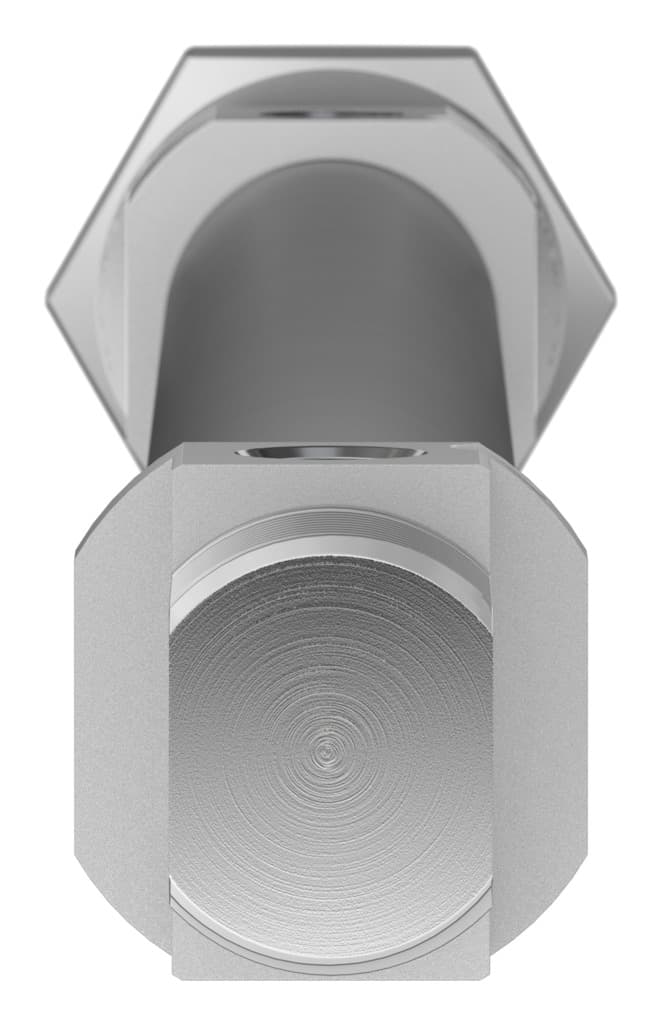

dsnu-20-250-ppv-a
Key Features
- 1The DSNU-20-250-PPV-A features pneumatic cushioning that is adjustable at both ends, ensuring smooth and controlled movements in your industrial applications.
- 2Built with high-alloy stainless steel for the piston rod and cylinder barrel, this cylinder offers excellent corrosion resistance and durability.
- 3With various mounting options available, including the ability to mount with or without additional components, the DSNU-20-250-PPV-A is versatile and adaptable to different setups.
- 4Conforming to standards like CETOP RP 52 P and ISO 6432, this cylinder ensures compatibility with a wide range of industrial systems.
- 5Designed for double-acting operation with compressed air, the DSNU-20-250-PPV-A delivers consistent performance under pressures ranging from 1 to 10 bar.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 250mm | Piston diameter | 20 mm |
| Piston rod thread | M8 | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
| Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.2J |
| Cushioning length | 15mm | Theoretical force at 6 bar, retracting | 158.3N |
| Theoretical force at 6 bar, advancing | 188.5N | Moving mass at 0?mm stroke | 44g |
| Additional moving mass per 10?mm stroke | 4g | Basic weight with 0?mm stroke | 186.8g |
| Additional weight per 10?mm stroke | 7.2g | Type of mounting | With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy Plain anodized | Seals material | NBR TPE-U(PU) |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
| Manufacturer ID | 19243 |
Specifications may be subject to change without notice
