Product Model

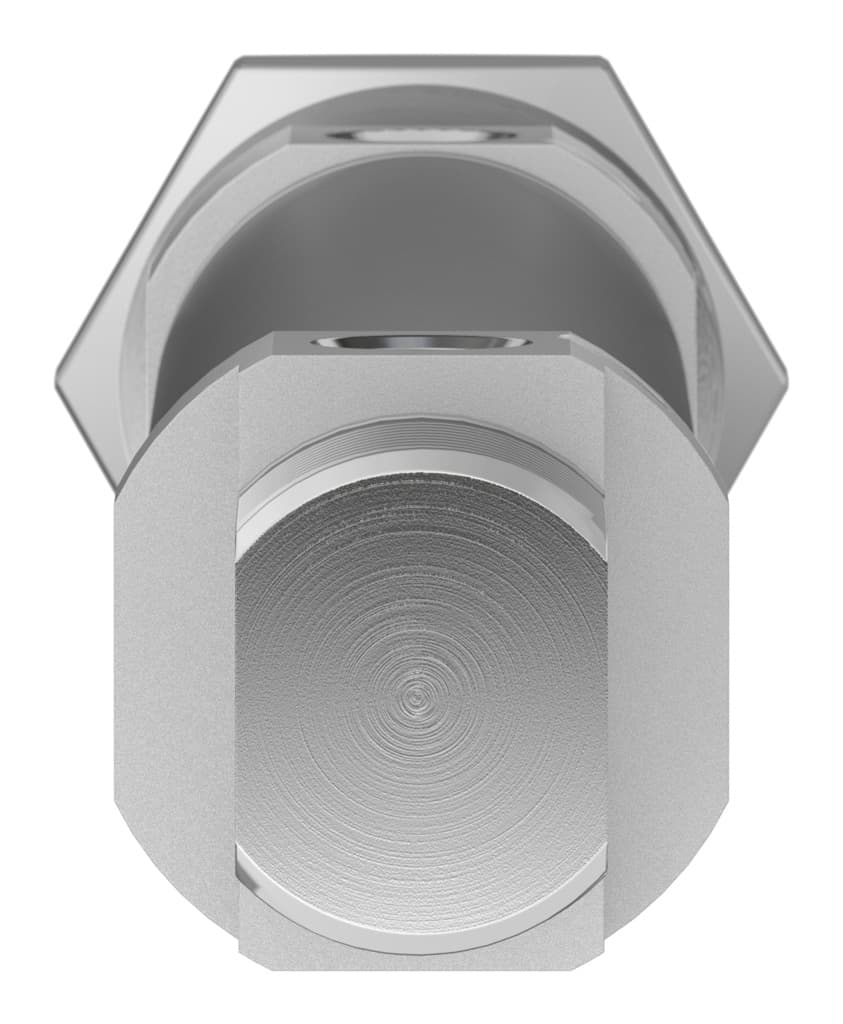

dsnu-1"- -ppv-a
Key Features
- 1The DSNU-1 1/4"- PPV-A pneumatic cylinder offers adjustable cushioning, ensuring optimal energy absorption and reduced noise and vibration in your industrial setup.
- 2Equipped with elastic cushioning rings at both ends, this cylinder provides smooth operation and extended service life, making it perfect for medium to heavy loads.
- 3Conforms to ISO 6431 standards, allowing for mounting in any position to suit your specific application needs. Ideal for a wide range of industrial uses.
- 4Constructed with high-quality materials, including a piston rod thread of 3/8-24 UNF-2A, ensuring reliable performance and long service life.
- 5Designed for precise control, the DSNU-1 1/4"- PPV-A pneumatic cylinder is suitable for applications requiring high accuracy and reliability, such as in manufacturing and automation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10.16mm 508mm | Piston diameter | 1" |
| Piston rod thread | 3/8-24 UNF-2A | Based on norm | ISO 6432 |
| Cushioning | Pneumatic cushioning, adjustable at both ends | Mounting position | Any |
| Piston rod end | External thread | Structural design | Piston Piston rod |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.30004J | Cushioning length | 14.986mm |
| Theoretical force at 6 bar, retracting | 220.098N | Theoretical force at 6 bar, advancing | 262N |
| Moving mass at 0?mm stroke | 70.988g | Additional weight per 10?mm stroke | 6.01g |
| Type of mounting | With accessories | Pneumatic connection | 1/8 NPT |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 548537 |
Specifications may be subject to change without notice
