Product Model

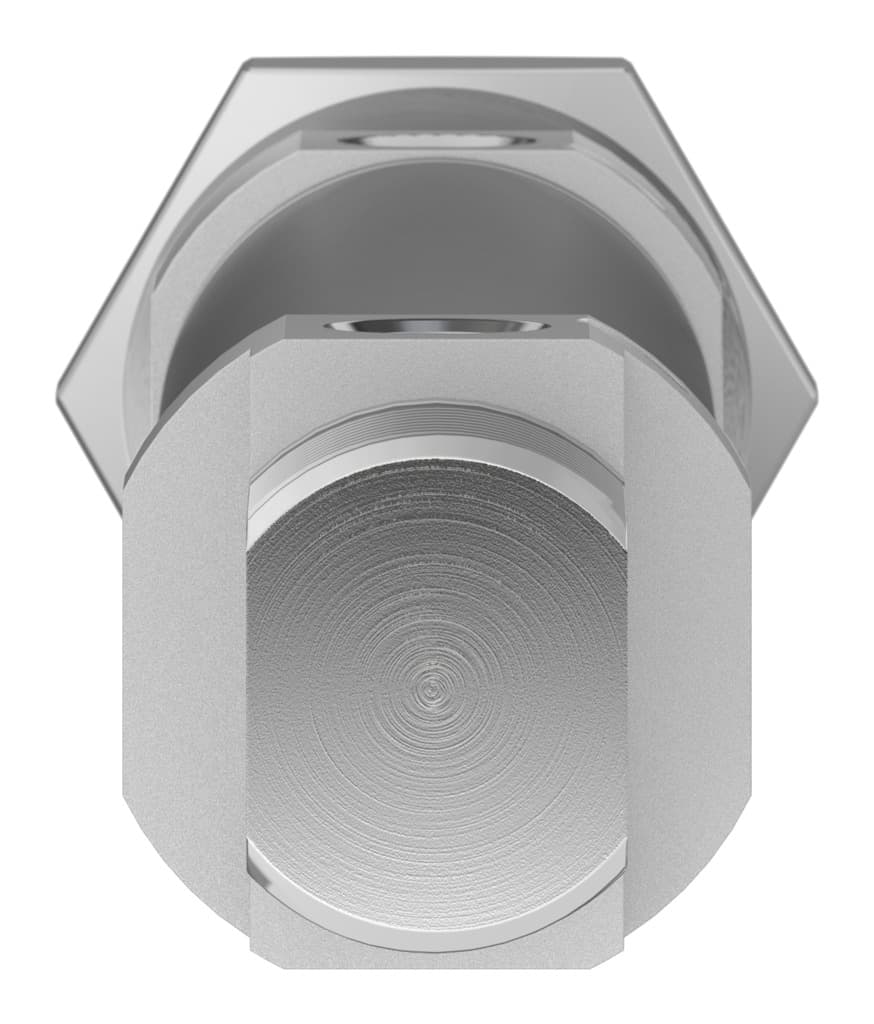

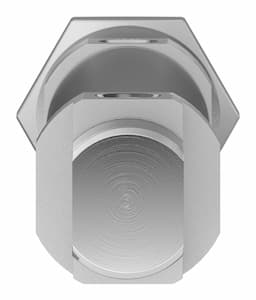

dsnu-1"-3"-ppv-a
Key Features
- 1Precision Pneumatics for Industrial Use
- 2Adjustable End-Position Cushioning
- 3Proximity Sensing Capability
- 4Versatile Mounting Options
- 5Compliance with ISO 6432 Standards
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 76.2mm | Piston diameter | 1" |
| Piston rod thread | 3/8-24 UNF-2A | Based on norm | ISO 6432 |
| Cushioning | Pneumatic cushioning, adjustable at both ends | Mounting position | Any |
| Piston rod end | External thread | Structural design | Piston Piston rod |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.30004J | Cushioning length | 17.018mm |
| Theoretical force at 6 bar, retracting | 247.321N | Theoretical force at 6 bar, advancing | 294.472N |
| Moving mass at 0?mm stroke | 70.988g | Additional moving mass per 10?mm stroke | 6.01g |
| Basic weight with 0?mm stroke | 237.998g | Additional weight per 10?mm stroke | 11g |
| Type of mounting | With accessories | Pneumatic connection | 1/8 NPT |
| Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
| Manufacturer ID | 546421 |
