Product Model
dsnu-12-70-p-a
Key Features

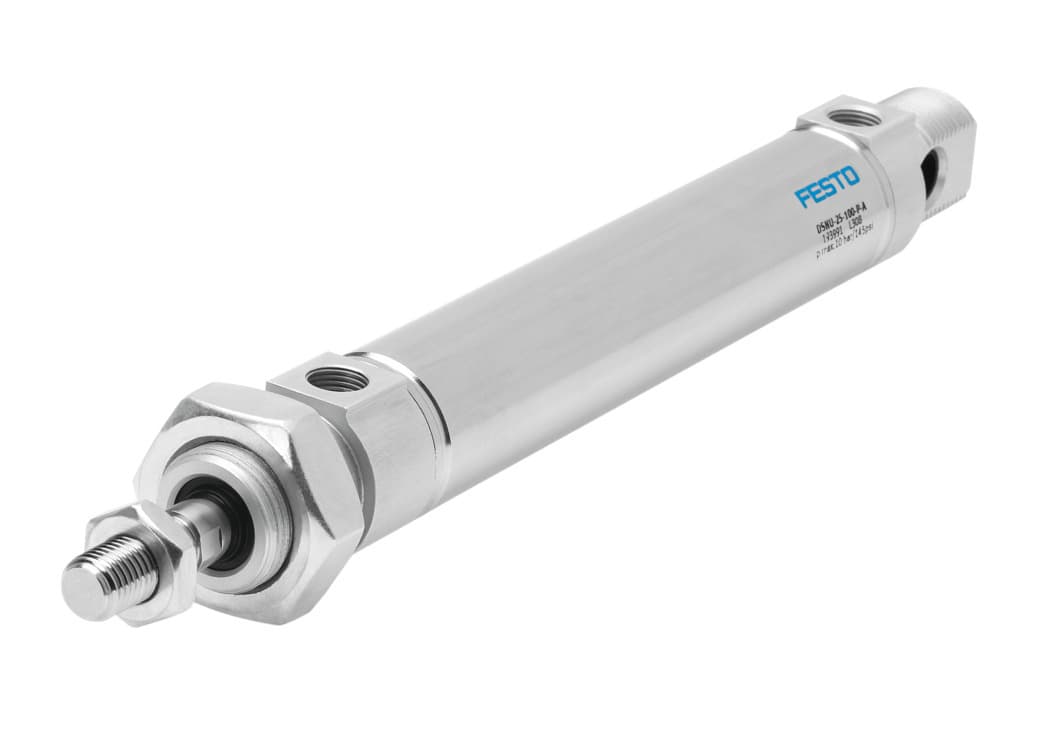

- 1The Festo DSNU-12-70-P-A is a high-performance pneumatic cylinder designed for precise motion control in various industrial applications. Its robust construction ensures reliable operation under demanding conditions.
- 2This cylinder features standardized dimensions and mounting interfaces, making it easy to integrate into existing systems. Its versatility allows it to be used in a wide range of applications, from machine tools to material handling.
- 3The DSNU-12-70-P-A is part of Festo's extensive product range, offering a variety of pneumatic components and solutions. It can be easily combined with other Festo products for a comprehensive automation system.
- 4With its advanced design, the DSNU-12-70-P-A provides high dynamic response and fast system reaction times. This makes it ideal for applications requiring quick and precise movements, such as in machine tools and handling systems.
- 5Festo's commitment to quality is evident in the DSNU-12-70-P-A, which is manufactured with high-quality materials and undergoes rigorous testing to ensure reliability and durability. This ensures that your production processes are efficient and reliable.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 70mm | Piston diameter | 12 mm |
| Piston rod thread | M6 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
| Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Variants | Piston rod at one end | Operating pressure | 1.5bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.07J |
| Theoretical force at 6 bar, retracting | 50.9N | Theoretical force at 6 bar, advancing | 67.9N |
| Moving mass at 0?mm stroke | 18.5g | Additional moving mass per 10?mm stroke | 2g |
| Basic weight with 0?mm stroke | 75g | Additional weight per 10?mm stroke | 4g |
| Type of mounting | With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Plain anodized |
| Seals material | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | High-alloy stainless steel | Manufacturer ID | 5249943 |
Specifications may be subject to change without notice
