Product Model

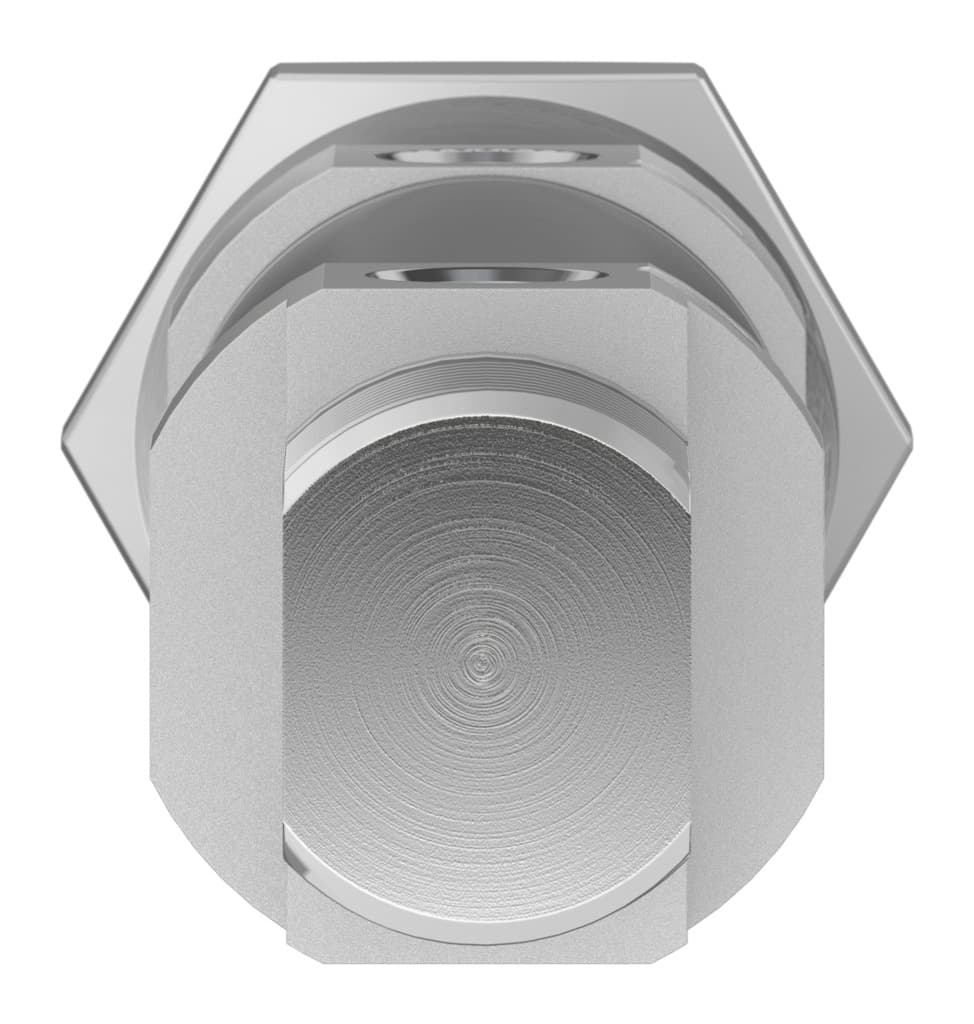

dsnu-1"-1"-ppv-a
Key Features
- 1The DSNU-1" pneumatic cylinder offers adjustable cushioning at both ends, ensuring smooth operation and minimizing wear and tear.
- 2Designed for double-acting operation, this cylinder provides precise control and efficient movement in both directions.
- 3With a corrosion resistance class of CRC 2, the DSNU-1" cylinder is suitable for use in normal industrial environments with moderate corrosion stress.
- 4Equipped with a 3/8-24 UNF-2A piston rod thread, this cylinder meets the ISO 6432 standard for compatibility and reliability.
- 5Compatible with proximity switches for position detection, ensuring accurate control and monitoring of the cylinder's movement.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 25.4mm | Piston diameter | 1" |
| Piston rod thread | 3/8-24 UNF-2A | Based on norm | ISO 6432 |
| Cushioning | Pneumatic cushioning, adjustable at both ends | Mounting position | Any |
| Piston rod end | External thread | Structural design | Piston Piston rod |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Variants | Piston rod at one end | Operating pressure | 1bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.30004J | Cushioning length | 17.018mm |
| Theoretical force at 6 bar, retracting | 247.321N | Theoretical force at 6 bar, advancing | 294.472N |
| Moving mass at 0?mm stroke | 70.988g | Additional moving mass per 10?mm stroke | 6.01g |
| Basic weight with 0?mm stroke | 237.998g | Additional weight per 10?mm stroke | 11g |
| Type of mounting | With accessories | Pneumatic connection | 1/8 NPT |
| Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
| Manufacturer ID | 546412 |
Specifications may be subject to change without notice
