Product Model

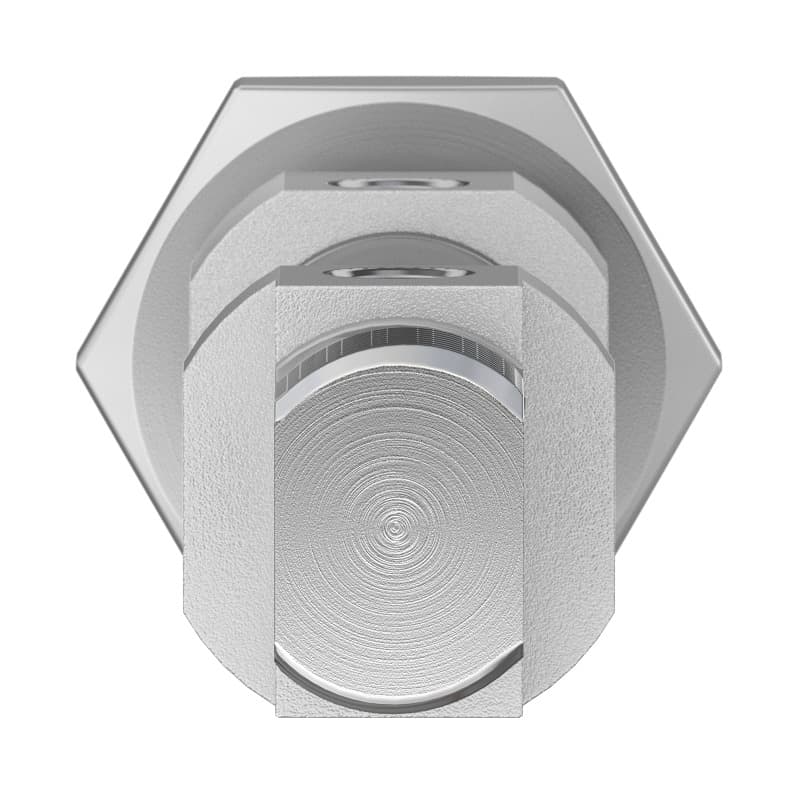

dsnu-10- -p-a
Key Features
- 1The DSNU-10-PPV-A pneumatic cylinder features a stroke of 10 mm and a piston diameter of 20 mm, making it suitable for precise and efficient motion control in various industrial settings.
- 2This cylinder is equipped with adjustable pneumatic cushioning at both ends, ensuring smooth operation and minimizing wear and tear on the system.
- 3The DSNU-10-PPV-A offers flexible mounting options, allowing for easy integration into different automation systems and configurations.
- 4Festo's DSNU series is renowned for its high-quality components and robust design, ensuring reliable performance in demanding industrial environments.
- 5The DSNU-10-PPV-A is part of Festo's extensive range of pneumatic cylinders, offering standardized dimensions and mounting interfaces for seamless integration with other Festo products.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 100mm | Piston diameter | 10 mm |
| Piston rod thread | M4 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Conforms to standard | CETOP RP 52 P ISO 6432 |
| Piston rod end | External thread | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Variants | Piston rod at one end |
| Operating pressure | 1.5bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.05J | Theoretical force at 6 bar, retracting | 39.6N |
| Theoretical force at 6 bar, advancing | 47.1N | Moving mass at 0?mm stroke | 8.5g |
| Additional moving mass per 10?mm stroke | 1g | Basic weight with 0?mm stroke | 37.3g |
| Additional weight per 10?mm stroke | 2.7g | Type of mounting | With accessories |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy Plain anodized | Seals material | NBR TPE-U(PU) |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | High-alloy stainless steel |
| Manufacturer ID | 14325 |
Specifications may be subject to change without notice
