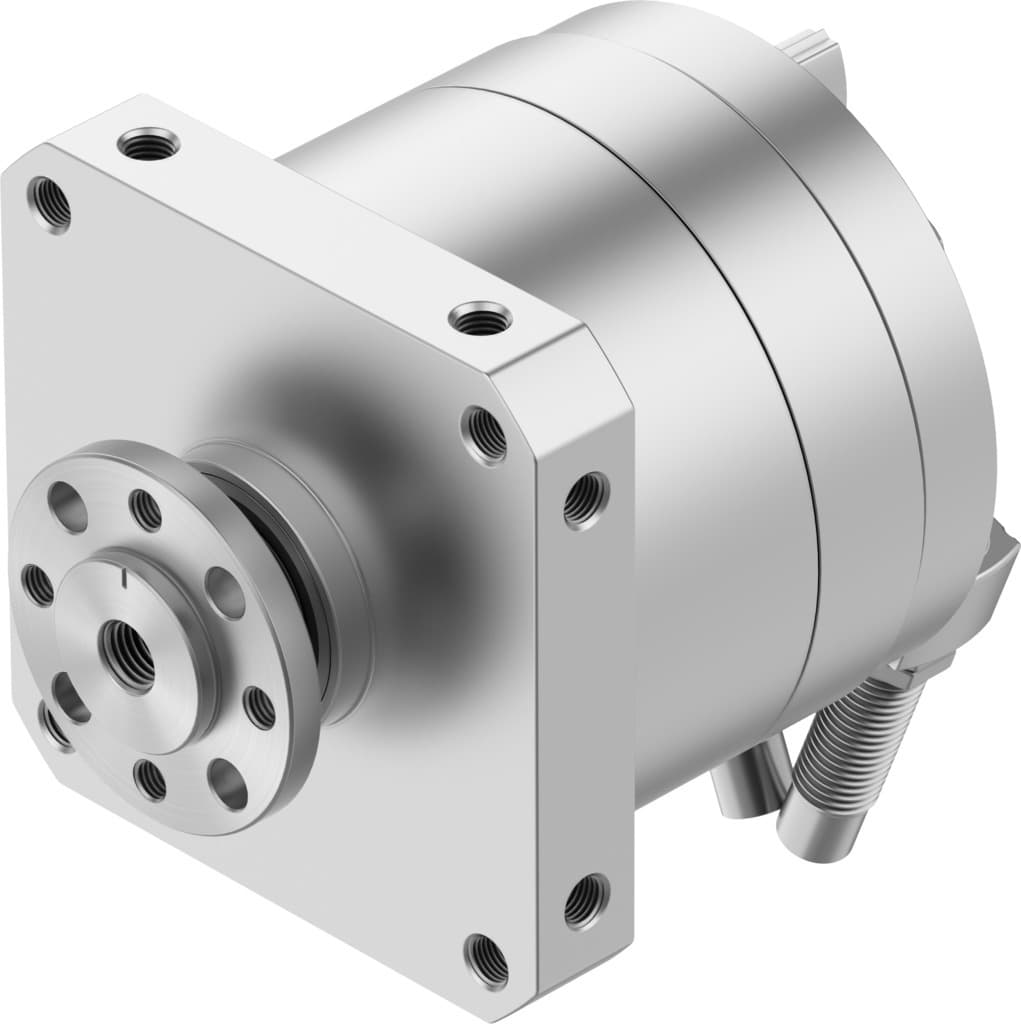

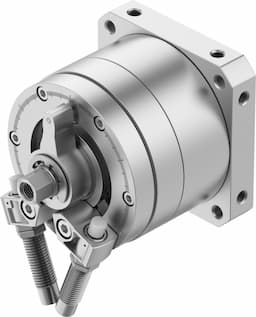

Product Model
dsm-t-40-270-cc-fw-a-b
Key Features
- 1The Festo DSM-T-40-270-CC-FW-A-B semi-rotary drive features a 16-degree cushioning angle, ensuring smooth and controlled motion. Its double-sided shock absorbers provide excellent dampening capabilities.
- 2With a swivel angle range of 0 to 240 degrees, this semi-rotary drive offers versatile positioning options. It is designed for double-acting operation, allowing for precise control in both directions.
- 3The DSM-T-40-270-CC-FW-A-B is constructed with high-quality materials, including nickel-plated steel for the drive shaft and TPE-U(PU) for the seals. It is also RoHS compliant, ensuring environmental safety.
- 4This semi-rotary drive operates within a wide pressure range of 2 to 10 bar, making it suitable for various industrial applications. It supports a maximum swivel frequency of 0.7 Hz at 6 bar, ensuring reliable performance.
- 5The Festo DSM-T-40-270-CC-FW-A-B is designed for use with compressed air to ISO 8573-1:2010 standards, ensuring cleanliness and reliability in cleanroom environments. It also meets Class 6 according to ISO 14644-1 for cleanroom applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 40 | Cushioning angle | 16deg |
| Adjustment range of swivel angle | 0deg 240deg | Swivel angle | 0deg 240deg |
| Cushioning | Pneumatic shock absorber at both ends | Mounting position | Any |
| Precision adjustment | -6deg | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 2bar 10bar |
| Max. swivel frequency at 6?bar | 0.7Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10°C 60°C | Max. axial force | 120N |
| Max. radial force | 350N | Theoretical torque at 6 bar | 40Nm |
| Permissible mass moment of inertia | 0.11kgm2 | Product weight | 4105g |
| Type of mounting | With internal thread | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 1145113 |
