Product Model

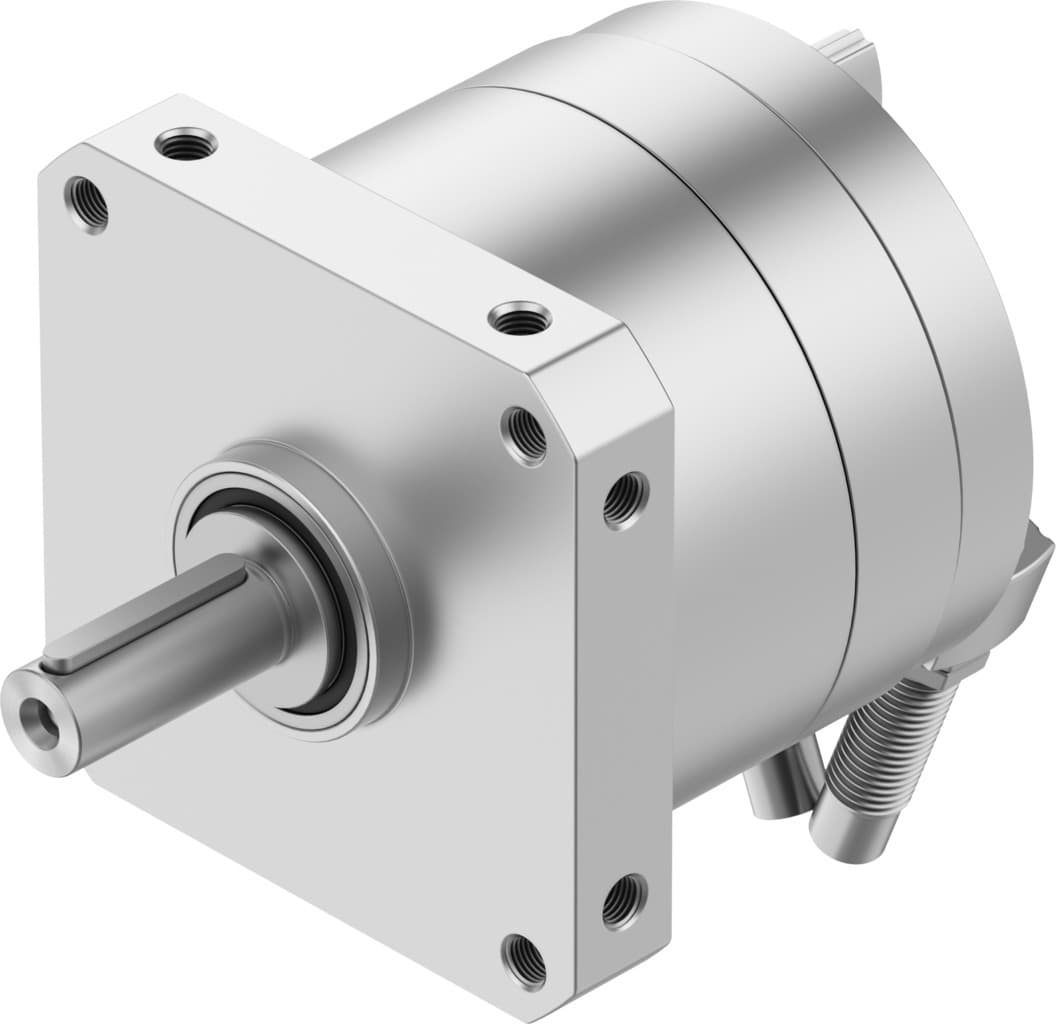

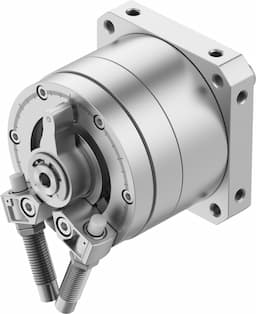

dsm-t-40-270-cc-a-b

Key Features
- 1The Festo DSM-T-40-270-CC-A-B is a high-performance automation component engineered for precise control and efficient operation. It integrates seamlessly with Festo's extensive range of pneumatic and electric components, offering a comprehensive solution for industrial automation needs.
- 2This component is part of Festo's Core Range, ensuring it is in stock worldwide and available for fast shipping. The Core Range offers a selection of essential functions and products that simplify your procurement process, providing high-quality solutions at an attractive price point.
- 3The DSM-T-40-270-CC-A-B is designed to meet the demands of various industrial applications, including machine tools and handling systems. It features advanced air preparation technology, ensuring optimal compressed air quality and reducing maintenance needs.
- 4Festo's commitment to quality is evident in the DSM-T-40-270-CC-A-B, which adheres to a globally established quality management system and relevant certifications. This ensures that every product meets the highest standards of performance and reliability.
- 5With Festo's holistic approach to quality, the DSM-T-40-270-CC-A-B is not just a product but a solution that enhances customer satisfaction. It is part of a comprehensive suite of products and services designed to streamline production processes and reduce costs through innovative automation technologies.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 40 | Cushioning angle | 16deg |
| Adjustment range of swivel angle | 0deg 240deg | Swivel angle | 0deg 240deg |
| Cushioning | Pneumatic shock absorber at both ends | Mounting position | Any |
| Precision adjustment | -3deg | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 2bar 10bar |
| Max. swivel frequency at 6?bar | 0.7Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10°C 60°C | Max. axial force | 120N |
| Max. radial force | 350N | Theoretical torque at 6 bar | 40Nm |
| Permissible mass moment of inertia | 0.11kgm2 | Product weight | 3970g |
| Type of mounting | With internal thread | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 1145112 |
Specifications may be subject to change without notice
