Product Model
dsm-t-25-270-p-a-b
Key Features

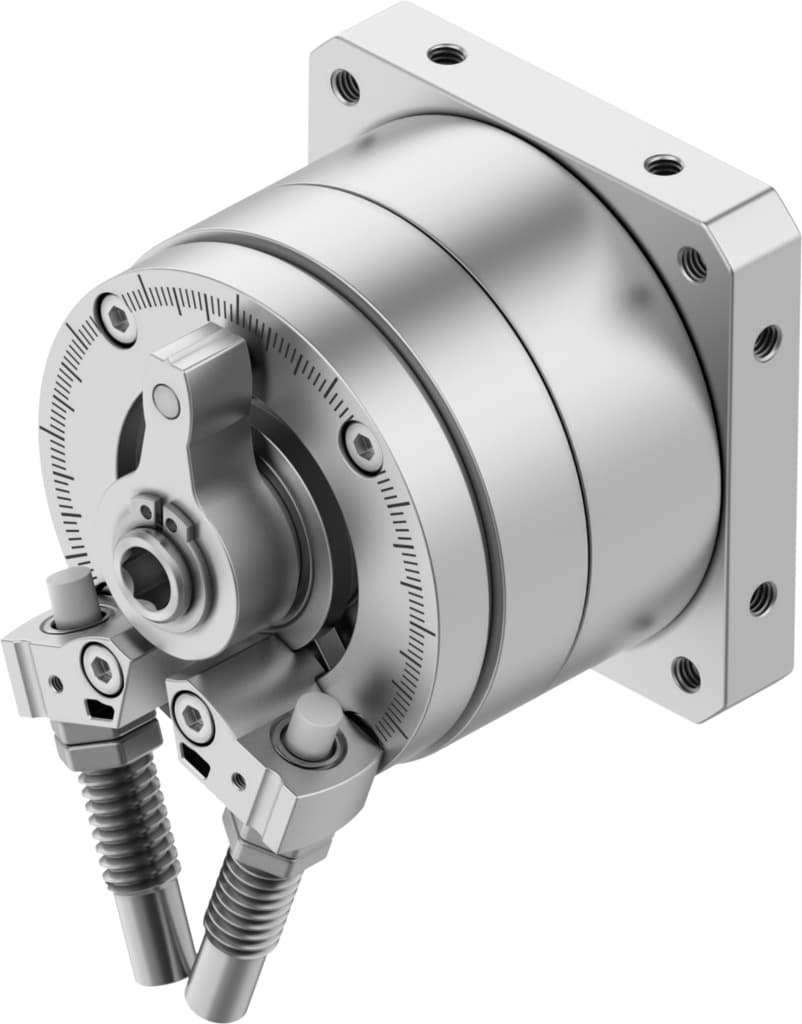

- 1The Festo DSM-T-25-270-P-A-B semi-rotary drive features a 270° swivel angle, providing extensive rotational flexibility for various industrial applications.
- 2Equipped with elastic cushioning rings/plates at both ends, this drive ensures smooth operation and minimizes wear and tear on components.
- 3The drive offers double-acting mode of operation and fine adjustment up to -6°, allowing for precise control and versatility in different settings.
- 4The Festo DSM-T-25-270-P-A-B is designed for use with compressed air to ISO 8573-1:2010, ensuring reliable operation in a variety of pneumatic systems.
- 5With a maximum swivel frequency of 2 Hz at 0.6 MPa (6 bar, 87 psi), this semi-rotary drive is suitable for high-performance applications requiring rapid movement.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 25 | Cushioning angle | 1.2deg |
| Adjustment range of swivel angle | 0deg 270deg | Swivel angle | 0deg 270deg |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Precision adjustment | -6deg | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991265 | Operating pressure | 2bar 10bar |
| Max. swivel frequency at 6?bar | 2Hz | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10°C 60°C | Max. axial force | 50N |
| Max. radial force | 120N | Theoretical torque at 6 bar | 10Nm |
| Permissible mass moment of inertia | 0.015kgm2 | Product weight | 970g |
| Type of mounting | With internal thread | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Drive shaft material | Steel Nickel-plated |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 1145098 |
