Product Model

dsm-t-12-270-p-fw-a-b

Manufacturer

Festo

Key Features

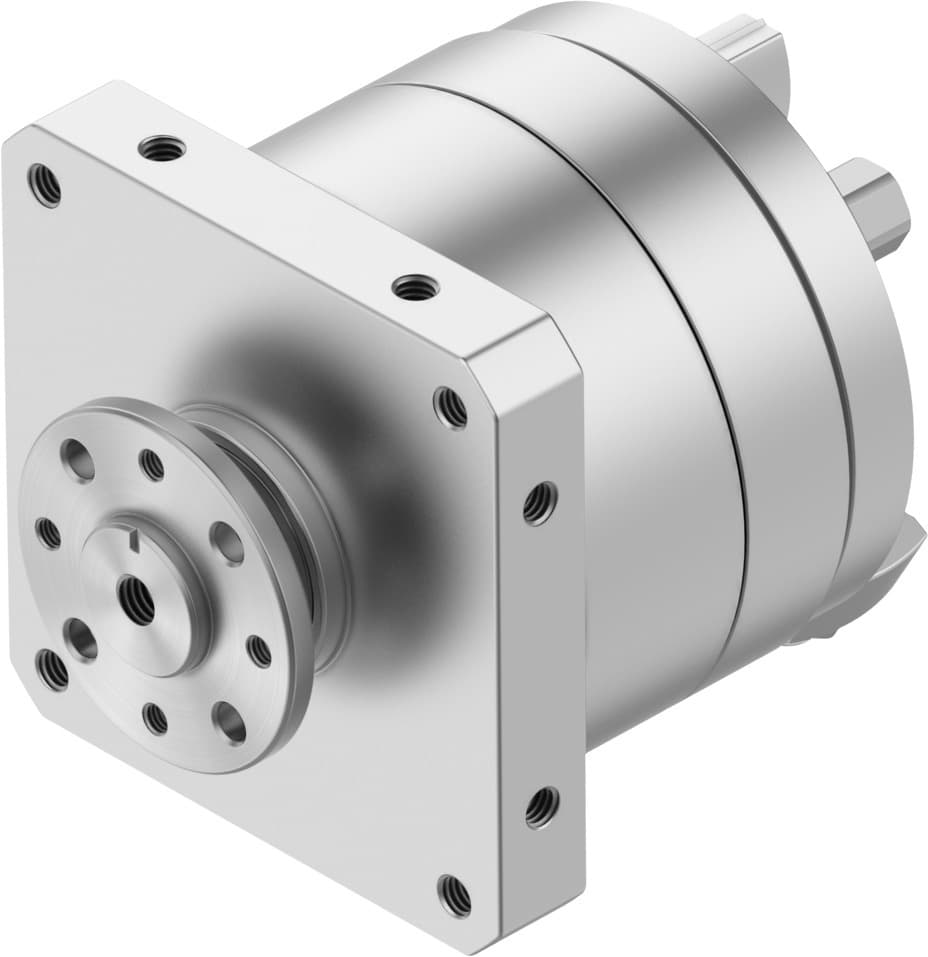

1The Festo DSM-12-270-P-FW-A-B semi-rotary drive offers a 270° swivel angle, ensuring precise control in various automation applications.
2Equipped with elastic cushioning rings/plates at both ends, this drive minimizes vibrations and noise, enhancing overall system stability.
3Designed for use with compressed air to ISO 8573-1:2010, this drive provides reliable operation in a wide range of pneumatic systems.
4With an optional mounting position and fine adjustment of -6°, the DSM-12-270-P-FW-A-B can be easily integrated into various mechanical setups.
5Built with nickel-plated steel drive shafts, TPE-U(PU) seals, and aluminum alloy housing, this drive ensures durability and resistance to corrosion.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	12	Cushioning angle	1.8deg
Adjustment range of swivel angle	0deg 270deg	Swivel angle	0deg 270deg
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Precision adjustment	-6deg	Mode of operation	Double-acting
Structural design	Rotary vane	Position sensing	For proximity sensor
Symbol	00991265	Operating pressure	2.5bar 10bar
Max. swivel frequency at 6?bar	2Hz	Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC)	0 - No corrosion stress	LABS (PWIS) conformity	VDMA24364-B2-L
Ambient temperature	-10°C 60°C	Max. axial force	18N
Max. radial force	45N	Theoretical torque at 6 bar	2.5Nm
Permissible mass moment of inertia	0.005kgm2	Product weight	383g
Type of mounting	With internal thread	Pneumatic connection	M5
Note on materials	RoHS-compliant	Drive shaft material	Steel Nickel-plated
Seals material	TPE-U(PU)	Housing material	Wrought aluminum alloy
Manufacturer ID	1145087
