Product Model

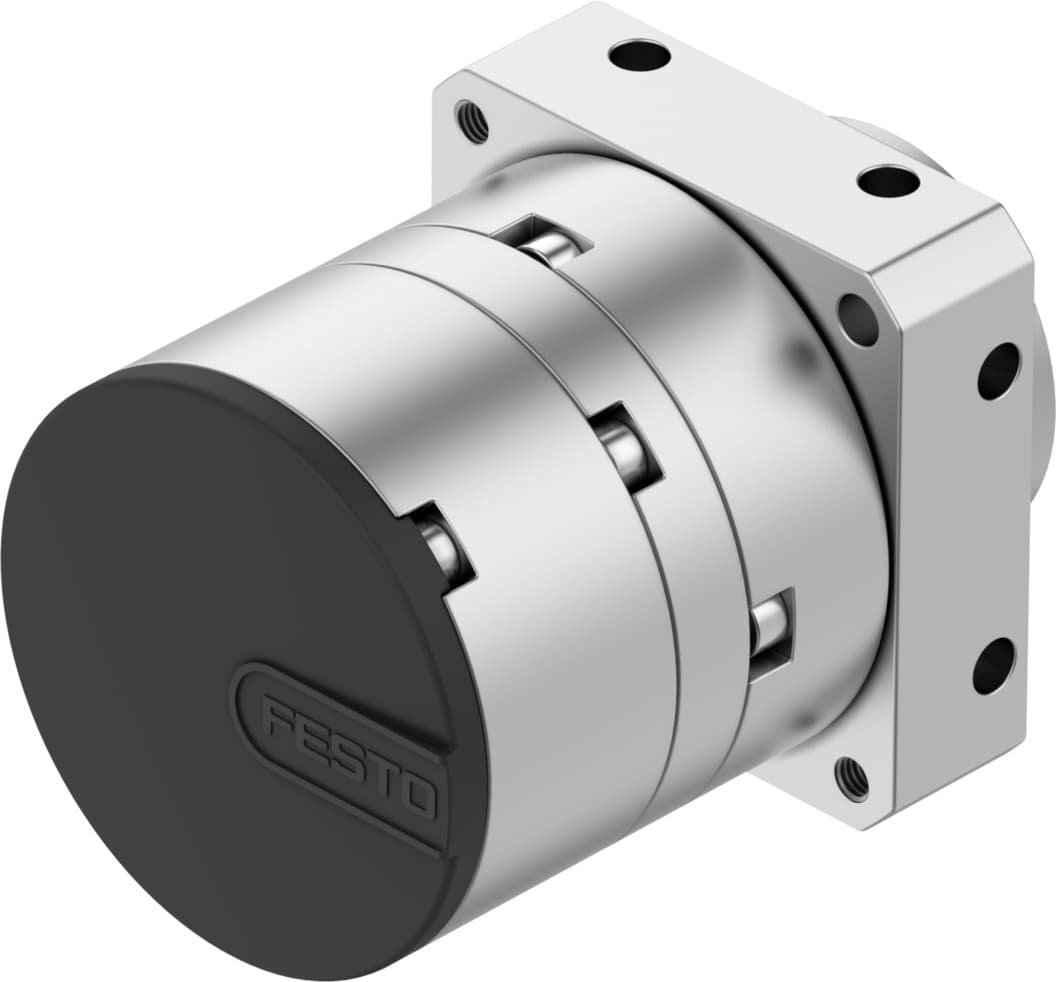

dsm-10-240-p-ff-fw
Key Features
- 1The DSM-10-240-P-FF-FW features a 0-200° adjustable swivel angle, providing flexibility in various industrial automation applications.
- 2This semi-rotary drive operates in double-acting mode, ensuring efficient operation and precise control in your manufacturing processes.
- 3Constructed with high-alloy stainless steel for the drive shaft, TPE-U(PU) for seals, and anodized aluminum housing, this actuator is built to last.
- 4Designed to operate with compressed air to ISO 8573-1:2010 [7:4:4], this actuator ensures reliable performance in a variety of industrial settings.
- 5With a product weight of 250g and a compact design, the DSM-10-240-P-FF-FW is easy to integrate into your existing automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 10 | Cushioning angle | 0deg |
| Adjustment range of swivel angle | 0deg 200deg | Swivel angle | 0deg 200deg |
| Mounting position | Any | Precision adjustment | -5deg |
| Mode of operation | Double-acting | Structural design | Rotary vane |
| Position sensing | None | Symbol | 00991265 |
| Operating pressure | 2.5bar 8bar | Max. swivel frequency at 6?bar | 2Hz |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 0°C 60°C |
| Theoretical torque at 6 bar | 0.85Nm | Permissible mass moment of inertia | 0.0026kgm2 |
| Product weight | 250g | Type of mounting | With internal thread |
| Pneumatic connection | M3 | Note on materials | RoHS-compliant |
| Drive shaft material | High-alloy stainless steel | Seals material | TPE-U(PU) |
| Housing material | Aluminum Anodized | Manufacturer ID | 185946 |
Specifications may be subject to change without notice
