Product Model

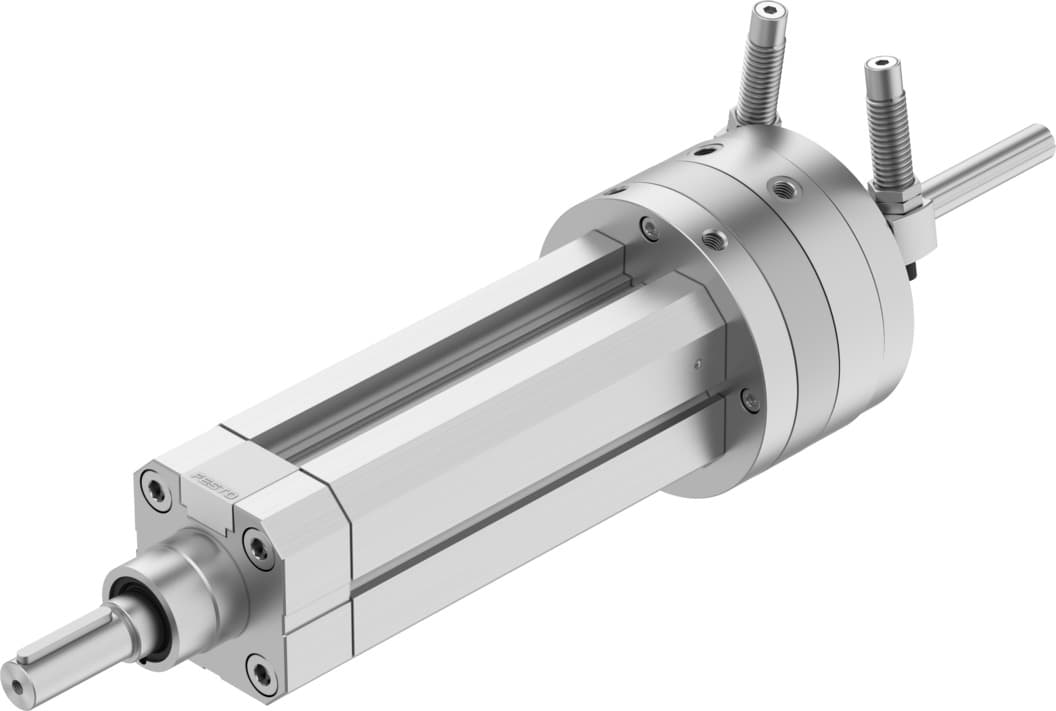

dsl-40-160-270-cc-a-s20-kf-b
Key Features
- 1Double-acting operation for versatile movement control.
- 2160mm stroke and 40mm piston diameter for robust performance.
- 3270° swivel angle for flexible positioning in various applications.
- 4Shock absorber at both ends for enhanced stability and reduced vibration.
- 5Recirculating ball bearing guide for smooth and precise movement.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cushioning angle | 16deg | Adjustment range of swivel angle | 0deg 240deg |
| Stroke | 160mm | Piston diameter | 40 mm |
| Swivel angle | 0deg 240deg | Cushioning | Pneumatic shock absorber at both ends Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Precision adjustment | -3deg |
| Mode of operation | Double-acting | Structural design | Rotary vane |
| Position sensing | For proximity sensor | Symbol | 00991269 |
| Variants | Through, hollow piston rod | Protection against torsion/guide | Guided on ball bearings |
| Operating pressure | 2.5bar 8bar | Max. impact velocity | 0.5m/s |
| Max. swivel frequency at 6?bar | 0.7Hz | Swivel angle backlash | 0.05deg |
| Repetition accuracy | 0.1deg | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -10°C 60°C |
| Dynamic load torque | 5.4Nm | Theoretical force at 6 bar, retracting | 495N |
| Theoretical force at 6 bar, advancing | 603N | Theoretical torque at 6 bar | 20Nm |
| Permissible mass moment of inertia | 0.004kgm2 | Product weight | 5350g |
| Basic weight with 0?mm stroke | 5350g | Additional weight per 10?mm stroke | 175g |
| Type of mounting | Optionally: Clamped in T slot With external thread | Pneumatic connection | G1/8 |
| Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
| Housing material | Aluminum Smooth anodized | Piston rod material | Tempered steel |
| Manufacturer ID | 556766 |
Specifications may be subject to change without notice
