Product Model

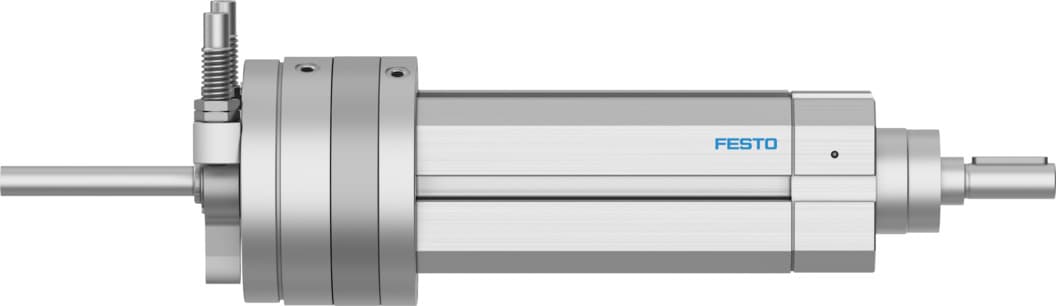

dsl-25-40-270-cc-a-s20-kf-b
Key Features
- 1The Festo DSL-25-40-270-CC-A-S20-KF-B offers a wide rotation angle adjustment range of 0° to 270°, providing flexibility in various industrial applications.
- 2With a stroke of 25 mm and a piston diameter of 40 mm, this actuator is designed for precise and efficient movement in linear and swivel operations.
- 3Equipped with elastic cushioning, the DSL-25-40-270-CC-A-S20-KF-B ensures smooth operation and reduces wear and tear on the actuator.
- 4The actuator is compatible with inductive sensors and proximity sensors, making it easy to integrate into complex automation systems.
- 5Designed for use with dried compressed air, lubricated or unlubricated, this actuator operates within a temperature range of -10°C to 60°C, ensuring reliability in diverse environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cushioning angle | 10deg | Adjustment range of swivel angle | 0deg 246deg |
| Stroke | 40mm | Piston diameter | 25 mm |
| Swivel angle | 0deg 246deg | Cushioning | Pneumatic shock absorber at both ends Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Precision adjustment | -3deg |
| Mode of operation | Double-acting | Structural design | Rotary vane |
| Position sensing | For proximity sensor | Symbol | 00991269 |
| Variants | Through, hollow piston rod | Protection against torsion/guide | Guided on ball bearings |
| Operating pressure | 2.5bar 8bar | Max. impact velocity | 0.5m/s |
| Max. swivel frequency at 6?bar | 1Hz | Swivel angle backlash | 0.05deg |
| Repetition accuracy | 0.1deg | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -10°C 60°C |
| Dynamic load torque | 0.7Nm | Theoretical force at 6 bar, retracting | 173.5N |
| Theoretical force at 6 bar, advancing | 248N | Theoretical torque at 6 bar | 5Nm |
| Permissible mass moment of inertia | 0.0016kgm2 | Product weight | 1750g |
| Basic weight with 0?mm stroke | 1750g | Additional weight per 10?mm stroke | 67g |
| Type of mounting | Optionally: Clamped in T slot With external thread | Pneumatic connection | M5 |
| Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy Smooth anodized | Piston rod material | Tempered steel |
| Manufacturer ID | 556664 |
