Product Model

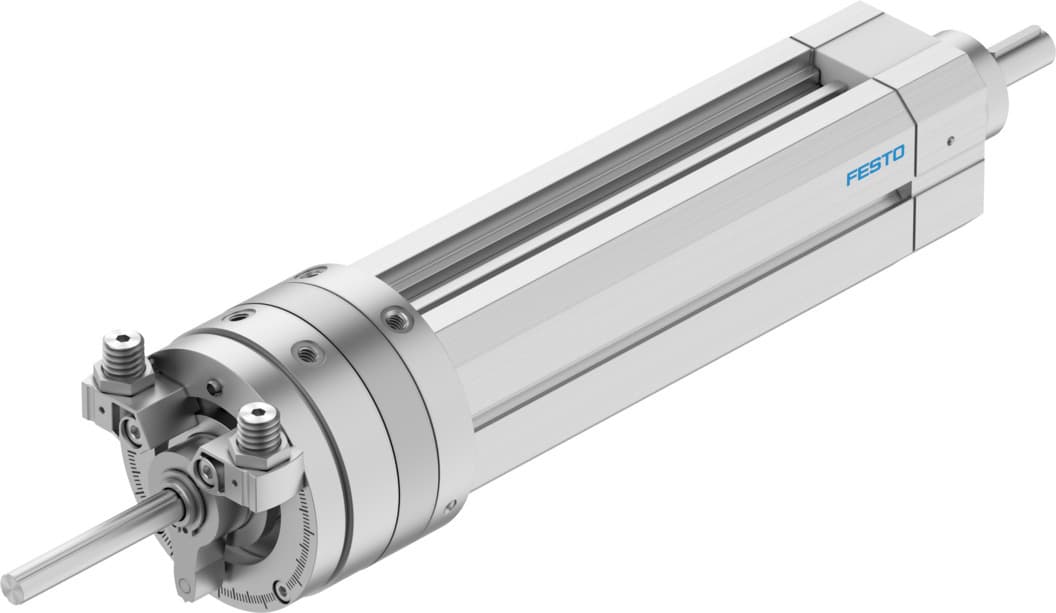

dsl-20- -270-p-a-s2-kf-b
Key Features
- 1High Precision Motion Control: The Festo DSL-20-50-270-P-A-S20-KF-B offers a 270° swivel angle and 50mm stroke, ensuring precise motion control in various industrial applications.
- 2Elastic Cushioning: Equipped with elastic cushioning components at both ends, this unit provides smooth operation and reduces wear and tear, extending its lifespan.
- 3Double-Acting Operation: Designed for double-acting mode, this swivel/linear unit can operate in both directions, enhancing its versatility and efficiency in industrial settings.
- 4Robust Construction: Made from high-quality materials like wrought aluminum alloy and tempered steel, the Festo DSL-20-50-270-P-A-S20-KF-B ensures durability and reliability in harsh environments.
- 5Advanced Position Detection: Featuring proximity switch position detection, this unit allows for accurate monitoring and control of its position, ensuring precise alignment and operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Adjustment range of swivel angle | 0deg 270deg | Stroke | 10mm 100mm |
| Piston diameter | 20 mm | Swivel angle | 0deg 272deg |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Precision adjustment | -6deg | Mode of operation | Double-acting |
| Structural design | Rotary vane | Position sensing | For proximity sensor |
| Symbol | 00991268 | Variants | Through piston rod |
| Protection against torsion/guide | Guided on ball bearings | Operating pressure | 2.5bar 8bar |
| Max. impact velocity | 0.5m/s | Max. swivel frequency at 6?bar | 2Hz |
| Swivel angle backlash | 0.05deg | Repetition accuracy | 1deg |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10°C 60°C | Dynamic load torque | 0.35Nm |
| Theoretical force at 6 bar, retracting | 120.5N | Theoretical force at 6 bar, advancing | 158N |
| Theoretical torque at 6 bar | 2.5Nm | Permissible mass moment of inertia | 7.0E-5kgm2 |
| Product weight | 1140g | Basic weight with 0?mm stroke | 1140g |
| Additional weight per 10?mm stroke | 52g | Type of mounting | Optionally: Clamped in T slot With external thread |
| Pneumatic connection | M5 | Cover material | Wrought aluminum alloy Anodized |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy Smooth anodized |
| Piston rod material | Tempered steel | Manufacturer ID | 556648 |
Specifications may be subject to change without notice
