Product Model

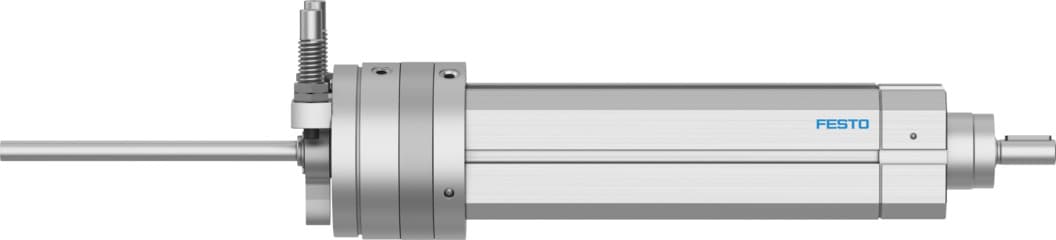

dsl-20-25-270-cc-a-s20-kf-b
Key Features
- 1The DSL-20-25-270-CC-A-S20-KF-B offers a wide adjustment range of 0-270°, ensuring precise positioning in various applications.
- 2This swivel actuator unit operates double-acting, providing smooth and reliable movement in both directions.
- 3Equipped with elastic cushioning rings/pads at both ends, it provides shock absorption and reduces wear on the system.
- 4The unit can be mounted in any position, offering flexibility in system design and installation.
- 5With a precision adjustment of -6° and a repetition accuracy of 1°, this actuator ensures high precision in its operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cushioning angle | 12deg | Adjustment range of swivel angle | 0deg 246deg |
| Stroke | 25mm | Piston diameter | 20 mm |
| Swivel angle | 0deg 246deg | Cushioning | Pneumatic shock absorber at both ends Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Precision adjustment | -3deg |
| Mode of operation | Double-acting | Structural design | Rotary vane |
| Position sensing | For proximity sensor | Symbol | 00991269 |
| Variants | Through, hollow piston rod | Protection against torsion/guide | Guided on ball bearings |
| Operating pressure | 2.5bar 8bar | Max. impact velocity | 0.5m/s |
| Max. swivel frequency at 6?bar | 1Hz | Swivel angle backlash | 0.05deg |
| Repetition accuracy | 0.1deg | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -10°C 60°C |
| Dynamic load torque | 0.35Nm | Theoretical force at 6 bar, retracting | 120.5N |
| Theoretical force at 6 bar, advancing | 158N | Theoretical torque at 6 bar | 2.5Nm |
| Permissible mass moment of inertia | 0.0012kgm2 | Product weight | 1220g |
| Basic weight with 0?mm stroke | 1220g | Additional weight per 10?mm stroke | 52g |
| Type of mounting | Optionally: Clamped in T slot With external thread | Pneumatic connection | M5 |
| Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy Smooth anodized | Piston rod material | Tempered steel |
| Manufacturer ID | 556622 |
Specifications may be subject to change without notice
