Product Model

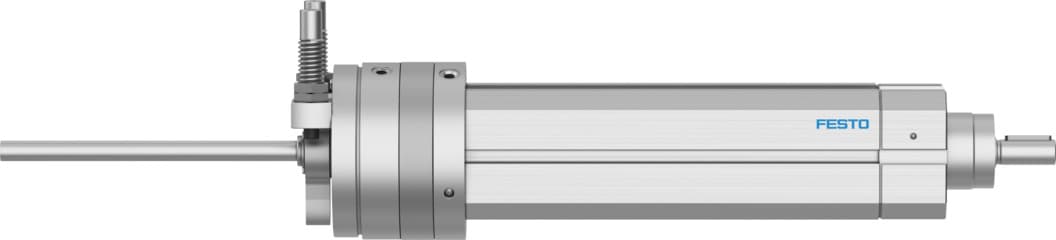

dsl-20-100-270-cc-a-s20-kf-b
Key Features
- 1High Precision Movement: The Festo DSL-20-100-270-CC-A-S20-KF-B offers precise rotary and linear movements, with a swivel angle of 270° and a stroke of 100mm, ensuring accurate and reliable operation in various industrial applications.
- 2Versatile Design: This swivel/linear unit is designed for double-acting operation, allowing for both forward and backward movements. It features flexible cushioning rings/plates at both ends for enhanced performance and durability.
- 3Robust Construction: Built with a wrought aluminum alloy housing and tempered steel piston rod, the unit provides a robust structure that can withstand various operating pressures from 2.5 to 8 bar.
- 4Easy Installation: The Festo DSL-20-100-270-CC-A-S20-KF-B can be easily mounted in T-slots or via male threads, making it convenient for integration into existing automation systems.
- 5Advanced Sensing Capabilities: Equipped with proximity sensing capabilities, this unit allows for precise position detection, ensuring accurate control and monitoring in complex automation tasks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cushioning angle | 12deg | Adjustment range of swivel angle | 0deg 246deg |
| Stroke | 100mm | Piston diameter | 20 mm |
| Swivel angle | 0deg 246deg | Cushioning | Pneumatic shock absorber at both ends Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Precision adjustment | -3deg |
| Mode of operation | Double-acting | Structural design | Rotary vane |
| Position sensing | For proximity sensor | Symbol | 00991269 |
| Variants | Through, hollow piston rod | Protection against torsion/guide | Guided on ball bearings |
| Operating pressure | 2.5bar 8bar | Max. impact velocity | 0.5m/s |
| Max. swivel frequency at 6?bar | 1Hz | Swivel angle backlash | 0.05deg |
| Repetition accuracy | 0.1deg | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -10°C 60°C |
| Dynamic load torque | 0.35Nm | Theoretical force at 6 bar, retracting | 120.5N |
| Theoretical force at 6 bar, advancing | 158N | Theoretical torque at 6 bar | 2.5Nm |
| Permissible mass moment of inertia | 0.0012kgm2 | Product weight | 1220g |
| Basic weight with 0?mm stroke | 1220g | Additional weight per 10?mm stroke | 52g |
| Type of mounting | Optionally: Clamped in T slot With external thread | Pneumatic connection | M5 |
| Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy Smooth anodized | Piston rod material | Tempered steel |
| Manufacturer ID | 556646 |
Specifications may be subject to change without notice
