Product Model

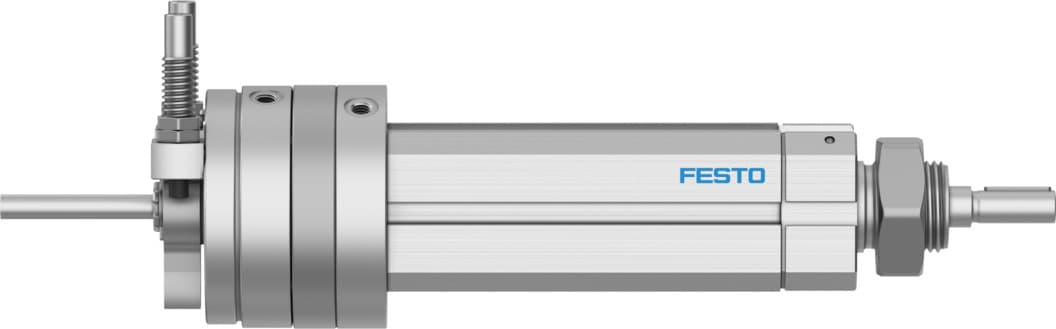

dsl-16-40-270-cc-a-s2-kf-b
Key Features
- 1The Festo DSL-16-40-270-CC-A-S2-KF-B offers precise motion control with a swivel angle of 0 to 246 degrees, ensuring smooth and accurate movements in various industrial applications.
- 2This unit features direct mounting and flange mounting options, including FBN-20/25 and FNG slot nuts in linear profile, making it adaptable to different installation requirements.
- 3Equipped with pneumatic shock absorbers at both ends and elastic cushioning rings/pads, the DSL-16-40-270-CC-A-S2-KF-B provides effective cushioning and reduces impact velocity to 500 mm/s.
- 4The unit operates within a pressure range of 2.5 to 8 bar and supports double-acting structural design with rotary vane position sensing for proximity sensors, enhancing its operational flexibility.
- 5With a maximum permissible mass moment of inertia of 1200 x 10^-4 kgm^2 and a cushioning time of approximately 0.3 seconds, the DSL-16-40-270-CC-A-S2-KF-B ensures reliable performance in demanding industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cushioning angle | 15deg | Adjustment range of swivel angle | 0deg 246deg |
| Stroke | 40mm | Piston diameter | 16 mm |
| Swivel angle | 0deg 246deg | Cushioning | Pneumatic shock absorber at both ends Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Precision adjustment | -3deg |
| Mode of operation | Double-acting | Structural design | Rotary vane |
| Position sensing | For proximity sensor | Symbol | 00991268 |
| Variants | Through piston rod | Protection against torsion/guide | Guided on ball bearings |
| Operating pressure | 2.5bar 8bar | Max. impact velocity | 0.5m/s |
| Max. swivel frequency at 6?bar | 1.5Hz | Swivel angle backlash | 0.05deg |
| Repetition accuracy | 0.1deg | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -10°C 60°C |
| Dynamic load torque | 0.17Nm | Theoretical force at 6 bar, retracting | 73.5N |
| Theoretical force at 6 bar, advancing | 103.5N | Theoretical torque at 6 bar | 1.25Nm |
| Permissible mass moment of inertia | 7.0E-4kgm2 | Product weight | 750g |
| Basic weight with 0?mm stroke | 750g | Additional weight per 10?mm stroke | 33g |
| Type of mounting | Optionally: Clamped in T slot With external thread | Pneumatic connection | M5 |
| Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy Smooth anodized | Piston rod material | Tempered steel |
| Manufacturer ID | 556589 |
Specifications may be subject to change without notice
