Product Model
dsl-16- -270-cc-a-s20-kf-b
Key Features

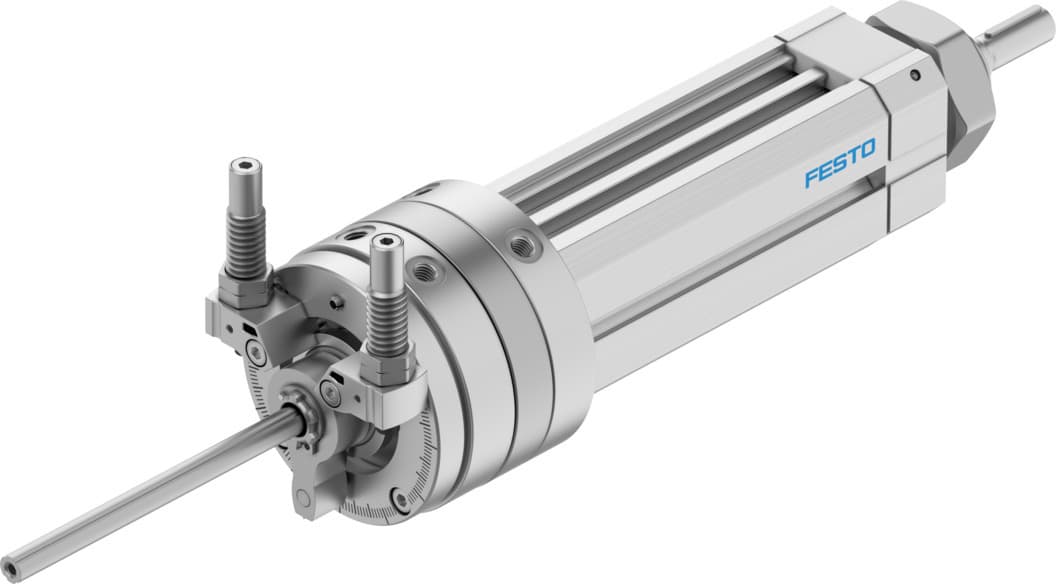

- 1The Festo DSL-16-50-270-CC-A-S20-KF-B swivel/linear unit features a 16mm piston diameter and a 50mm stroke, offering precise and reliable linear motion in a variety of applications.
- 2Equipped with a 270° swivel angle, this unit provides versatile positioning and flexibility in automation systems, ensuring smooth operation and efficient movement.
- 3The unit includes shock absorbers at both ends, providing elastic cushioning and protecting against impacts, ensuring durability and longevity in demanding environments.
- 4Designed with recirculating ball bearing guides, this swivel/linear unit ensures smooth and precise movement, reducing wear and tear on the components, and extending the lifespan of the unit.
- 5The Festo DSL-16-50-270-CC-A-S20-KF-B is designed for double-acting operation, allowing for both extension and retraction, making it suitable for a wide range of applications in automation and robotics.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cushioning angle | 15deg | Adjustment range of swivel angle | 0deg 246deg |
| Stroke | 10mm 100mm | Piston diameter | 16 mm |
| Swivel angle | 0deg 246deg | Cushioning | Pneumatic shock absorber at both ends Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Precision adjustment | -3deg |
| Mode of operation | Double-acting | Structural design | Rotary vane |
| Position sensing | For proximity sensor | Symbol | 00991269 |
| Variants | Through, hollow piston rod | Protection against torsion/guide | Guided on ball bearings |
| Operating pressure | 2.5bar 8bar | Max. impact velocity | 0.5m/s |
| Max. swivel frequency at 6?bar | 1.5Hz | Swivel angle backlash | 0.05deg |
| Repetition accuracy | 0.1deg | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -10°C 60°C |
| Dynamic load torque | 0.17Nm | Theoretical force at 6 bar, retracting | 73.5N |
| Theoretical force at 6 bar, advancing | 103.5N | Theoretical torque at 6 bar | 1.25Nm |
| Permissible mass moment of inertia | 7.0E-4kgm2 | Product weight | 750g |
| Basic weight with 0?mm stroke | 750g | Additional weight per 10?mm stroke | 33g |
| Type of mounting | Optionally: Clamped in T slot With external thread | Pneumatic connection | M5 |
| Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy Smooth anodized | Piston rod material | Tempered steel |
| Manufacturer ID | 556616 |
Specifications may be subject to change without notice
