Product Model

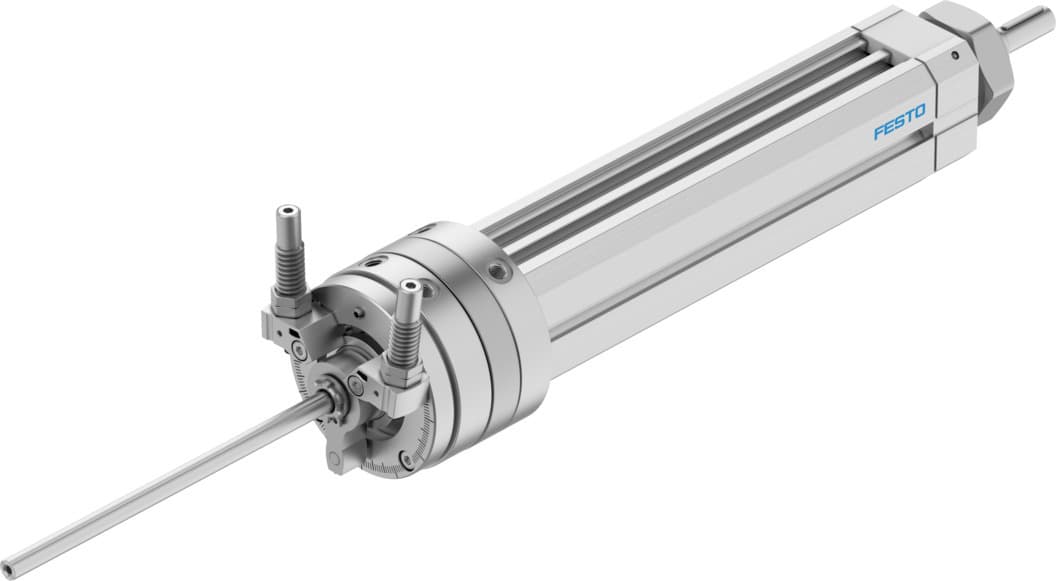

dsl-16-100-270-cc-a-s20-b
Key Features
- 1High Precision Motion Control: The Festo DSL-16-100-270-CC-A-S20-B offers precise motion control with a 16mm piston diameter and 100mm stroke, ensuring reliable performance in various applications.
- 2Wide Swivel Angle: With a swivel angle of up to 270°, this unit provides extensive rotational movement, making it versatile for diverse motion control needs.
- 3Shock Absorber at Both Ends: Equipped with shock absorbers at both ends, this unit minimizes vibrations and ensures smooth operation, reducing wear and tear.
- 4Double-Acting Mode: Designed for double-acting mode of operation, this swivel/linear unit can handle both forward and reverse movements efficiently.
- 5Robust Construction: Built with a wrought aluminum alloy housing and tempered steel piston rod, this unit offers durability and resistance to corrosion, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cushioning angle | 15deg | Adjustment range of swivel angle | 0deg 246deg |
| Stroke | 100mm | Piston diameter | 16 mm |
| Swivel angle | 0deg 246deg | Cushioning | Pneumatic shock absorber at both ends Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Precision adjustment | -3deg |
| Mode of operation | Double-acting | Structural design | Rotary vane |
| Position sensing | For proximity sensor | Symbol | 00991269 |
| Variants | Through, hollow piston rod | Protection against torsion/guide | With plain-bearing guide |
| Operating pressure | 2.5bar 8bar | Max. impact velocity | 0.5m/s |
| Max. swivel frequency at 6?bar | 1.5Hz | Swivel angle backlash | 2deg |
| Repetition accuracy | 0.1deg | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -10°C 60°C |
| Dynamic load torque | 0.1Nm | Theoretical force at 6 bar, retracting | 73.5N |
| Theoretical force at 6 bar, advancing | 102.5N | Theoretical torque at 6 bar | 1.25Nm |
| Permissible mass moment of inertia | 7.0E-4kgm2 | Product weight | 700g |
| Basic weight with 0?mm stroke | 700g | Additional weight per 10?mm stroke | 33g |
| Type of mounting | Optionally: Clamped in T slot With external thread | Pneumatic connection | M5 |
| Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy Smooth anodized | Piston rod material | Tempered steel |
| Manufacturer ID | 556418 |
Specifications may be subject to change without notice
