Product Model

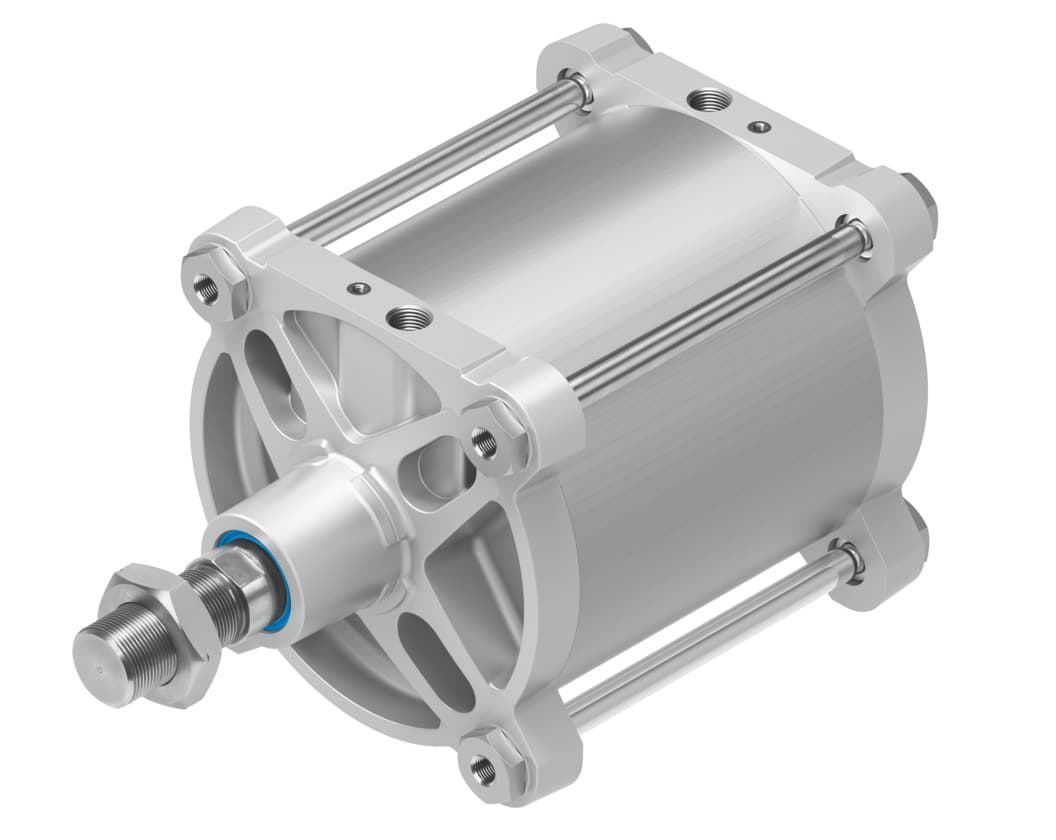

dsbg-250- -ppva-n3
Key Features
- 1The Festo DSBG-250-PPVA-N3 pneumatic cylinder features a stroke range of 1 mm to 2250 mm, making it versatile for various industrial applications.
- 2With a piston diameter of 250 mm, this cylinder offers a robust design suitable for heavy-duty operations in factory automation.
- 3The cylinder is equipped with pneumatic cushioning, adjustable at both ends, ensuring smooth operation and extended lifespan.
- 4The DSBG-250-PPVA-N3 operates within a pressure range of 0.06 MPa to 1 MPa (0.6 bar to 10 bar), providing reliable performance under various conditions.
- 5Designed for double-acting operation, this cylinder can handle both extension and retraction strokes efficiently, enhancing productivity in industrial processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 2250mm | Piston diameter | 250 mm |
| Piston rod thread | M42x2 | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Piston rod end | External thread |
| Structural design | Piston Piston rod Tie rod Cylinder barrel | Position sensing | For proximity sensor |
| Symbol | 00991235 | Variants | Piston rod at one end |
| Operating pressure | 0.6bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Cushioning length | 55mm |
| Cushioning length, advancing | 55mm | Cushioning length, retracting | 55mm |
| Theoretical force at 6 bar, retracting | 28274N | Theoretical force at 6 bar, advancing | 29452N |
| Moving mass at 0?mm stroke | 9978g | Additional moving mass per 10?mm stroke | 157g |
| Basic weight with 0?mm stroke | 29313g | Additional weight per 10?mm stroke | 384g |
| Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1 |
| Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
| Piston seal material | NBR | Material of piston | Cast aluminum |
| Piston rod material | High-alloy steel | Piston rod wiper material | NBR |
| Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
| Material of bearing | Metal polymer compound | Collar nut material | Steel, galvanized |
| Tie rod material | High-alloy steel | Manufacturer ID | 2865078 |
Specifications may be subject to change without notice
