Product Model

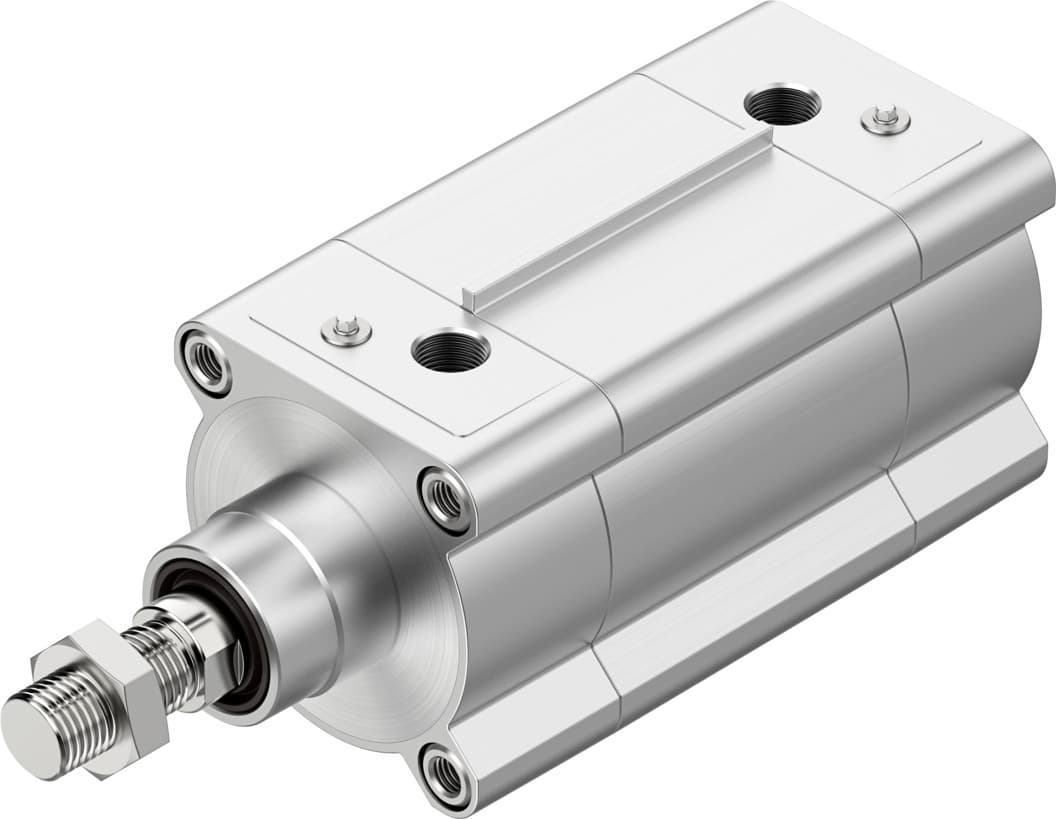

dsbf-c-80-100-ppva-n3-r
Key Features
- 1The Festo DSBF-C-80-100-PPVA-N3-R ISO cylinder offers high-quality pneumatic cushioning that ensures smooth and controlled movement, reducing wear and tear on the cylinder.
- 2With a piston diameter of 80mm and a stroke length of 100mm, this cylinder provides precise and reliable operation in a variety of industrial applications.
- 3The cylinder features M20x1.5 piston rod thread, allowing for easy integration with other Festo components and ensuring a secure connection.
- 4The ISO 15552 conformity ensures that the cylinder meets international standards for pneumatic cylinders, guaranteeing compatibility and reliability.
- 5The double-acting mode of operation allows for both extension and retraction strokes, providing flexibility in application design and increasing overall efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 100mm | Piston diameter | 80 mm |
| Piston rod thread | M20x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Conforms to standard | ISO 15552 |
| Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Operating pressure | 0.4bar 12bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 3 - High corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 1.8J |
| Cushioning length | 31mm | Theoretical force at 6 bar, retracting | 2721N |
| Theoretical force at 6 bar, advancing | 3016N | Moving mass | 1190g |
| Moving mass at 0?mm stroke | 800g | Additional moving mass per 10?mm stroke | 39g |
| Product weight | 4081g | Basic weight with 0?mm stroke | 3131g |
| Additional weight per 10?mm stroke | 95g | Type of mounting | Optionally: With internal thread With accessories |
| Pneumatic connection | G3/8 | Note on materials | RoHS-compliant |
| Cover material | Die-cast aluminum, coated | Piston seal material | TPE-U(PU) |
| Material of piston | Wrought aluminum alloy | Piston rod material | High-alloy stainless steel |
| Piston rod wiper material | TPE-U(PU) | Buffer seal material | TPE-U(PU) |
| Cushion piston material | POM | Material of cylinder barrel | Wrought aluminum alloy, anodized |
| Nut material | High-alloy stainless steel | Material of bearing | POM |
| Flange screws material | Steel, galvanized | Manufacturer ID | 1778433 |
Specifications may be subject to change without notice
