Product Model

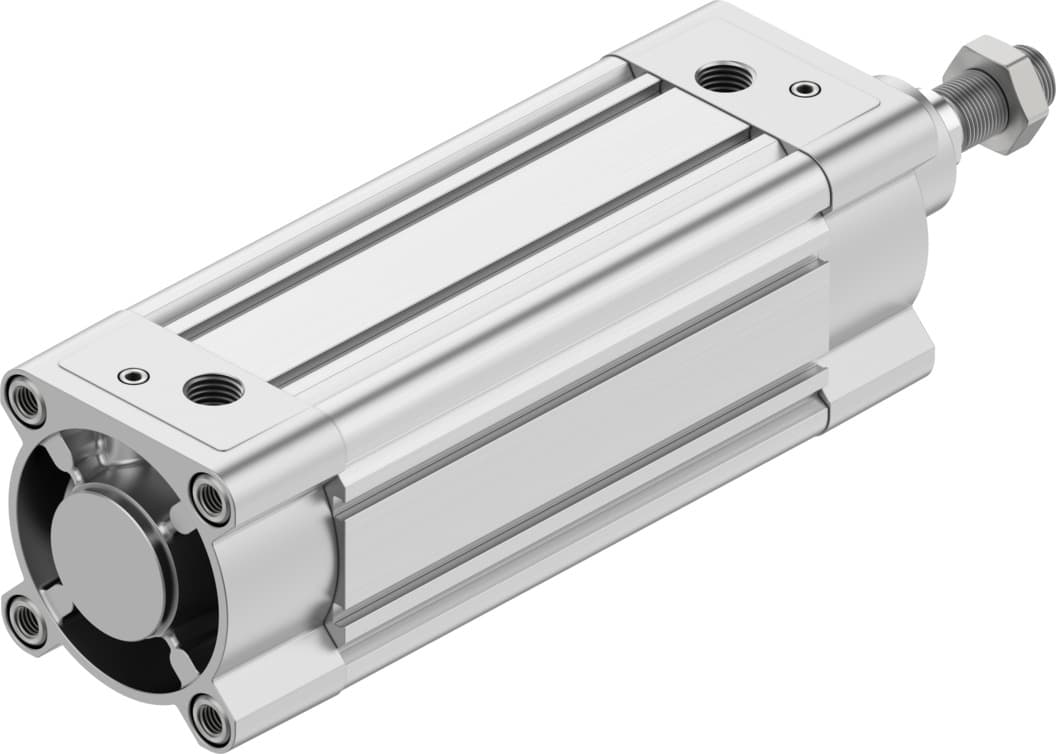

dsbc-80-150-d3-ppva-n3
Key Features
- 1The DSBC-80-150-D3-PPVA-N3 offers adjustable pneumatic cushioning at both ends, ensuring smooth operation and reduced wear and tear.
- 2This cylinder conforms to the ISO 15552 standard, ensuring compatibility with a wide range of industrial applications.
- 3Made from high-quality materials including wrought aluminum alloy for the piston and high-alloy steel for the piston rod, this cylinder is built to last.
- 4The DSBC-80-150-D3-PPVA-N3 can be mounted via female thread or with accessories, providing flexibility in installation.
- 5Designed for double-acting operation, this cylinder can handle both retracting and advancing strokes with ease, making it ideal for various automation tasks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 150mm | Piston diameter | 80 mm |
| Piston rod thread | M20x1.5 | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Conforms to standard | ISO 15552 |
| Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991235 |
| Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 1.8J | Cushioning length | 31mm |
| Theoretical force at 6 bar, retracting | 2721N | Theoretical force at 6 bar, advancing | 3016N |
| Moving mass at 0?mm stroke | 810g | Additional moving mass per 10?mm stroke | 39g |
| Basic weight with 0?mm stroke | 2720g | Additional weight per 10?mm stroke | 143g |
| Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G3/8 |
| Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
| Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
| Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
| Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
| Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
| Flange screws material | Steel, galvanized | Manufacturer ID | 3656641 |
Specifications may be subject to change without notice
