Product Model

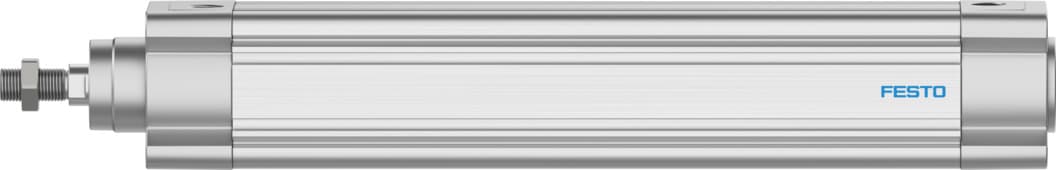

dsbc-63-300-d3-ppsa-n3
Key Features
- 1The Festo DSBC-63-300-D3-PPSA-N3 is a precision pneumatic valve engineered for reliable performance in industrial automation applications. Its robust design ensures long-lasting operation.
- 2This valve features a compact size, making it ideal for space-constrained environments. Its compact design does not compromise on functionality, ensuring efficient fluid control.
- 3The DSBC-63-300-D3-PPSA-N3 is designed with advanced materials and manufacturing techniques, providing high durability and resistance to wear and tear.
- 4This pneumatic valve is equipped with advanced control mechanisms, allowing for precise regulation of fluid flow. It supports a wide range of industrial processes, including manufacturing and assembly lines.
- 5The Festo DSBC-63-300-D3-PPSA-N3 is part of Festo's comprehensive range of pneumatic components, ensuring compatibility and integration with other Festo products for seamless system operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 300mm | Piston diameter | 63 mm |
| Piston rod thread | M16x1.5 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Conforms to standard | ISO 15552 |
| Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00992970 |
| Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 1.3J | Cushioning length | 22mm |
| Theoretical force at 6 bar, retracting | 1682N | Theoretical force at 6 bar, advancing | 1870N |
| Moving mass at 0?mm stroke | 430g | Additional moving mass per 10?mm stroke | 25g |
| Basic weight with 0?mm stroke | 1774g | Additional weight per 10?mm stroke | 92g |
| Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G3/8 |
| Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
| Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
| Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
| Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
| Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
| Flange screws material | Steel, galvanized | Manufacturer ID | 3657825 |
Specifications may be subject to change without notice
