Product Model

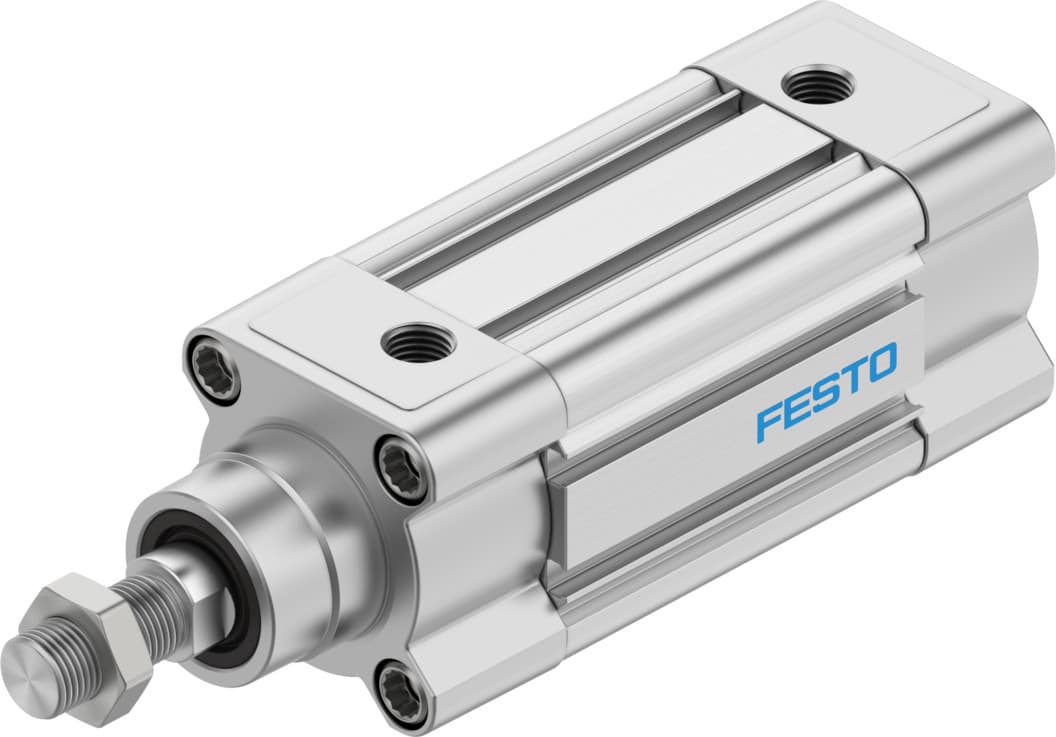

dsbc-50-50-d3-ppsa-n3
Key Features
- 1The Festo DSBC-50-70-D3-PPSA-N3 pneumatic cylinder offers a stroke length of 70 mm, making it suitable for applications requiring precise and controlled movements.
- 2With a piston diameter of 50 mm and a piston rod thread of M16x1.5, this cylinder provides a robust and reliable connection for various industrial automation tasks.
- 3Equipped with self-adjusting pneumatic end-position cushioning, the DSBC-50-70-D3-PPSA-N3 ensures smooth operation and reduces wear on the cylinder, extending its lifespan.
- 4The cylinder conforms to the ISO 15552 standard, ensuring compatibility with a wide range of industrial systems and applications.
- 5Designed for double-acting operation, the DSBC-50-70-D3-PPSA-N3 can handle both forward and reverse movements efficiently, making it versatile for various industrial tasks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 50mm | Piston diameter | 50 mm |
| Piston rod thread | M16x1.5 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Conforms to standard | ISO 15552 |
| Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00992970 |
| Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 1J | Cushioning length | 22mm |
| Theoretical force at 6 bar, retracting | 990N | Theoretical force at 6 bar, advancing | 1178N |
| Moving mass at 0?mm stroke | 365g | Additional moving mass per 10?mm stroke | 25g |
| Basic weight with 0?mm stroke | 1216g | Additional weight per 10?mm stroke | 78g |
| Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/4 |
| Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
| Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
| Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
| Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
| Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
| Flange screws material | Steel, galvanized | Manufacturer ID | 3659495 |
Specifications may be subject to change without notice
