Product Model

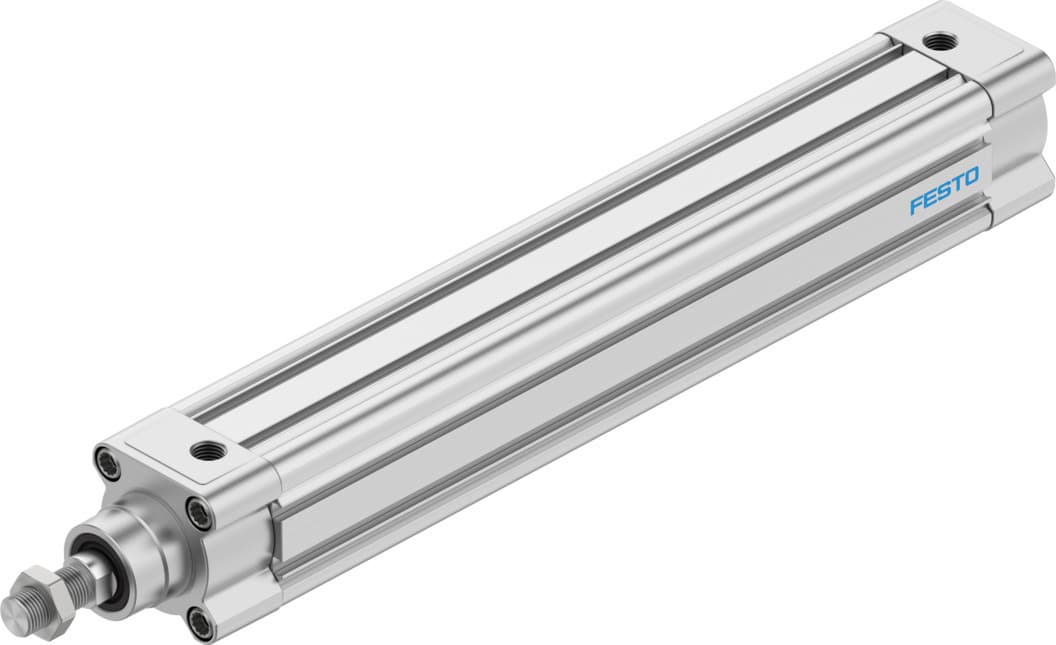

dsbc-50-320-d3-ppsa-n3
Key Features
- 1The DSBC-50-320-D3-PPSA-N3 ISO cylinder comes equipped with PPS self-adjusting pneumatic end-position cushioning, ensuring smooth and controlled movements.
- 2Designed for double-acting operation, this cylinder can be used in both extension and retraction modes, providing versatility in various industrial applications.
- 3Conforming to the ISO 15552 standard, this cylinder ensures compatibility and reliability in a wide range of industrial settings.
- 4The DSBC-50-320-D3-PPSA-N3 can be assembled in any position, offering flexibility in system design and integration.
- 5With an operating pressure range of 0.4 to 12 bar, this cylinder is suitable for a variety of applications requiring different pressure levels.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 320mm | Piston diameter | 50 mm |
| Piston rod thread | M16x1.5 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Conforms to standard | ISO 15552 |
| Piston rod end | External thread | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00992970 |
| Variants | Piston rod at one end | Operating pressure | 0.4bar 12bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 1J | Cushioning length | 22mm |
| Theoretical force at 6 bar, retracting | 990N | Theoretical force at 6 bar, advancing | 1178N |
| Moving mass at 0?mm stroke | 365g | Additional moving mass per 10?mm stroke | 25g |
| Basic weight with 0?mm stroke | 1216g | Additional weight per 10?mm stroke | 78g |
| Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/4 |
| Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
| Piston seal material | TPE-U(PU) | Material of piston | Wrought aluminum alloy |
| Piston rod material | High-alloy steel | Piston rod wiper material | TPE-U(PU) |
| Buffer seal material | TPE-U(PU) | Cushion piston material | POM |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Nut material | Steel, galvanized |
| Rod wiper material | TPE-E | Material of bearing | Metal polymer compound |
| Flange screws material | Steel, galvanized | Manufacturer ID | 3659506 |
Specifications may be subject to change without notice
